Product Details:
|
Model: | AP4050DN | Detail: | Huawei AP4050DN 802.11ac Wave 2, 2 X 2 MIMO, And Two Spatial Streams AP |
---|---|---|---|
Name: | AP4050DN - Huawei Indoor Access Points | Keywords: | Wifi Access Point |
Maximum Rate: | 1.267 Gbit/s | Radio Protocols: | 802.11a/b/g/n/ac/ac Wave 2 |
MIMO: | Spatial Streams 2 X 2:2 | Maximum Number Of Concurrent Users: | ≤ 512 |
Antenna Type: | Built-in Omnidirectional Dual-band Antennas | ||
High Light: | Huawei Network Switches 2X2 MIMO,Wifi Access Point Huawei Sfp Switch |

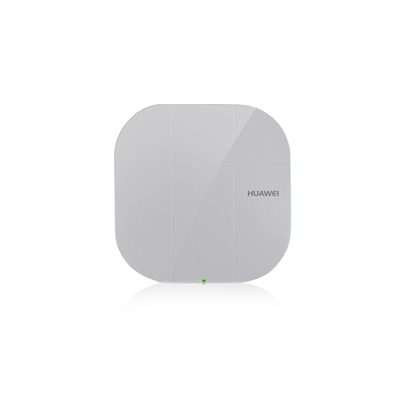

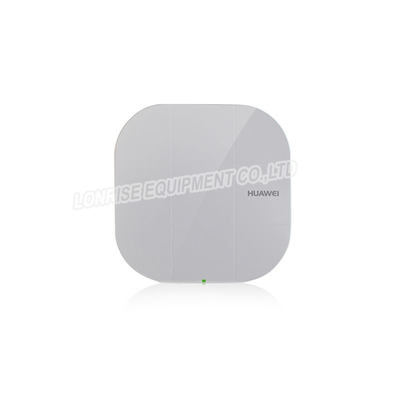

Huawei AP4050DN 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams AP
Huawei AP4050DN is a next-generation Access Point (AP) that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP
complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users, greatly enhancing user experience.
AP4050DN Specification |
|
Dimensions (H x W x D) | 35 x 170 x 170 mm |
Interface Type |
1 x 10/100/1000M self-adaptive Ethernet interface (RJ45) Console interface(RJ45 x 1) |
LED Indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
Power Input |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3af/at |
Operating Temperature | -10°C to +50°C |
Storage Temperature | –40°C to +70°C |
Operating Humidity | 5% to 95% (non-condensing) |
Altitude | –60 m to +5000 m |
Dustproof and Waterproof Grade |
IP41 |
Atmospheric Pressure | 53 kPa to 106 kPa |
Antenna Type | Built-in omnidirectional dual-band antennas |
Maximum Number of Concurrent Users | ≤ 512 |
MIMO: Spatial Streams | 2 x 2:2 |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
Maximum Rate | 1.267 Gbit/s |
Maximum Transmit power | 2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) |
Power Increment | 1 dBm |
Product Name | AP4050DN | AP4050DN-HD | AP4050DN-E | AP4050DN-S |
Dimension | 35 mm x 170 mm x 170 mm | 35 mm x 170 mm x 170 mm | 53 mm x 220 mm x 220 mm | 35mmx 170mm×170mm |
Power Input |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3af/at |
DC: 12V ±10% PoE power: In compliance with IEEE 802.3af/at |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3at |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3at |
Operating Temperature | -10°C to +50°C | –10°C to +50°C | –10°C to +50°C | –10°C to +50°C |
Maximum Number of Concurrent Users | ≤ 512 | ≤ 512 | ≤ 512 | ≤ 512 |
