Product Details:
|
| Model: | ASA5555-FPWR-K9 | Name: | ASA5555-FPWR-K9 Cisco ASA 5500 Firewalls |
|---|---|---|---|
| Detail: | ASA 5555-X With FirePOWER Services, 8GE Data, AC, 3DES/AES, 2 SSD | Throughput: Application Control (AVC): | 1,750 Mbps |
| Stateful Inspection Throughput (maximum): | 4 Gbps | Stateful Inspection Throughput (multiprotocol): | 2 Gbps |
| Users/nodes: | Unlimited | Dimensions(H X W X D): | 1.67 X 16.7 X 19.1 In.(4.24 X 42.9 X 48.4 Cm) |
| High Light: | Cisco Asa Firewall 8GE Data,5500 Cisco Asa Firewall,Unlimited Cisco Firewall Device |
||

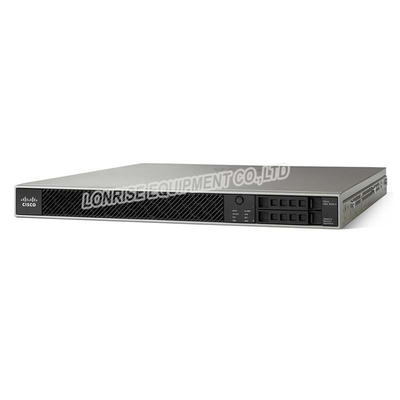

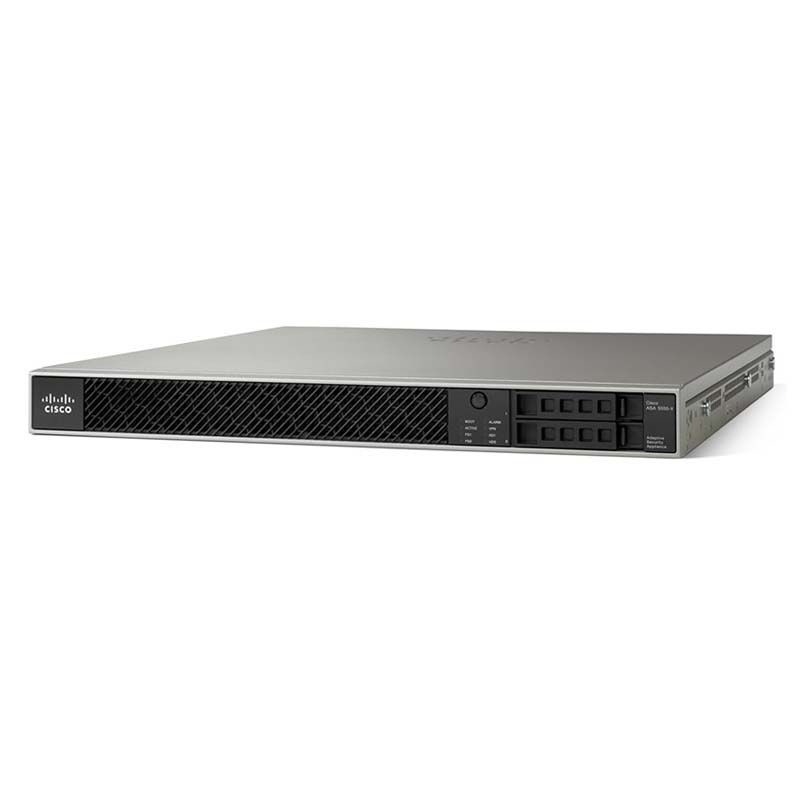

ASA5555 - FPWR - K9 - Cisco ASA 5500 Firewalls in stock best price
The ASA5555-FPWR-K9 is the ASA 5555-X with FirePOWER Services, 8GE data, AC, 3DES/AES, 2 SSD.
ASA5555-FPWR-K9 Specification |
|
| Product Number | ASA5555-FPWR-K9 |
| Product Description | ASA 5555-X with FirePOWER Services, 8GE data, AC, 3DES/AES, 2 SSD |
|
Throughput: Application Control (AVC) |
1,750 Mbps |
|
Throughput: Application Control (AVC) and IPS |
1,250 Mbps |
| Maximum concurrent sessions | 1,000,000 |
| Maximum New Connections per second | 50,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM |
| Stateful inspection throughput (maximum) | 4 Gbps |
| Stateful inspection throughput (multiprotocol) | 2 Gbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput |
700 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 5000 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections | 5000 |
| Virtual interfaces (VLANs) | 500 |
| Security contexts(included; maximum) | 2; 100 |
| High availability | Active/Active and Active/Standby |
|
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | 1 interface card |
| User-accessible Flash slot | 0 |
| USB 2.0 ports | 2 |
| Integrated I/O | 8 GE copper |
| Expansion I/O |
6 GE copper or 6 GE SFP |
| Dedicated management port | Yes (1 GE) |
| Serial ports | 1 RJ-45 console |
| Solid-state drive |
2 slots, RAID 1 120 GB MLC SED |
| Memory | 16 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 23 to 104°F (-5 to 40°C) |
| Relative humidity | 90 percent |
| Altitude | Designed and tested for 0 to 10,000 ft (3050 m) |
| Acoustic noise |
67.9 dBA max |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | 100 to 240 VAC |
| AC normal line voltage | 100 to 240 VAC |
| AC current |
5A, 100 to 120V 2.5A, 200 to 240V |
| AC frequency | 50/60 Hz |
| Dual-power supplies | Yes |
| DC domestic line voltage |
-40.5 to 56 VDC (-48 VDC nominal) |
| DC international line voltage |
-55 to -72 VDC (-60 VDC nominal) |
| DC current | 15A (maximum input) |
| Steady state | 90W |
| Maximum peak |
134W |
| Maximum heat dissipation |
458 Btu/hr |
| Form factor | 1RU, 19-in. rack-mountable |
| Dimensions(H x W x D) | 1.67 x 16.7 x 19.1 in.(4.24 x 42.9 x 48.4 cm) |
| Weight (with AC power supply) |
16.82 lb (7.63 kg) with single power supply 18.86 lb (8.61 kg) with dual power supply |
| Product Number | ASA5555-FPWR-K9 |
| Product Description | ASA 5555-X with FirePOWER Services, 8GE data, AC, 3DES/AES, 2 SSD |
|
Throughput: Application Control (AVC) |
1,750 Mbps |
|
Throughput: Application Control (AVC) and IPS |
1,250 Mbps |
| Stateful inspection throughput (maximum) | 4 Gbps |
| Stateful inspection throughput (multiprotocol) | 2 Gbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput |
700 Mbps |
| Users/nodes | Unlimited |
| Dimensions(H x W x D) | 1.67 x 16.7 x 19.1 in.(4.24 x 42.9 x 48.4 cm) |
| Weight (with AC power supply) |
16.82 lb (7.63 kg) with single power supply 18.86 lb (8.61 kg) with dual power supply |
| Models | ASA5555-FPWR-K9 | ASA5515-FPWR-K9 |
| Product Description | ASA 5555-X with FirePOWER Services, 8GE data, AC, 3DES/AES, 2 SSD | ASA 5515-X with FirePOWER Services, 6GE data, AC, 3DES/AES, SSD |
|
Throughput: Application Control (AVC) |
1,750 Mbps | 500 Mbps |
|
Throughput: Application Control (AVC) and IPS |
1,250 Mbps | 250 Mbps |
| Memory | 16GB | 8GB |
| Flash | 8GB | 8GB |
| Height (rack units) | 1 RU | 1 RU |
