Product Details:
|
| Model: | WS-C2960X-24PS-L | Name: | WS-C2960X-24PS-L Catalyst 2960-X Switch |
|---|---|---|---|
| Detail: | Cisco Catalyst 2960-X 24 GigE PoE 370W, 4 X 1G SFP, LAN Base | Feature Set: | LAN Base |
| Uplink Interfaces: | 4 X 1G SFP | Ports: | 24 X Ethernet 10/100/1000 Gigabit Ports |
| Available PoE Power: | 370W | Maximum Stacking Number: | 8 |
| High Light: | Catalyst Gigabit Ethernet Network Switch,SFPCisco Optical Ethernet Switch |
||

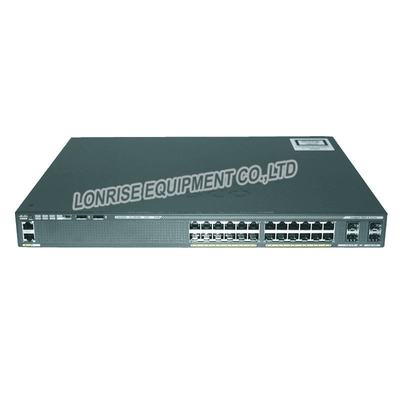

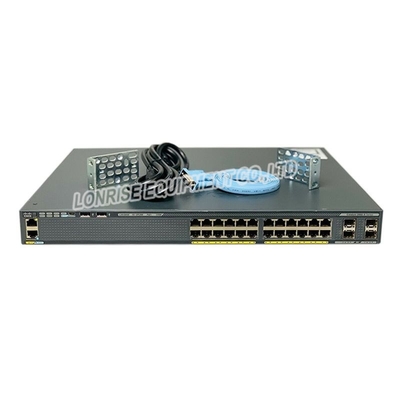

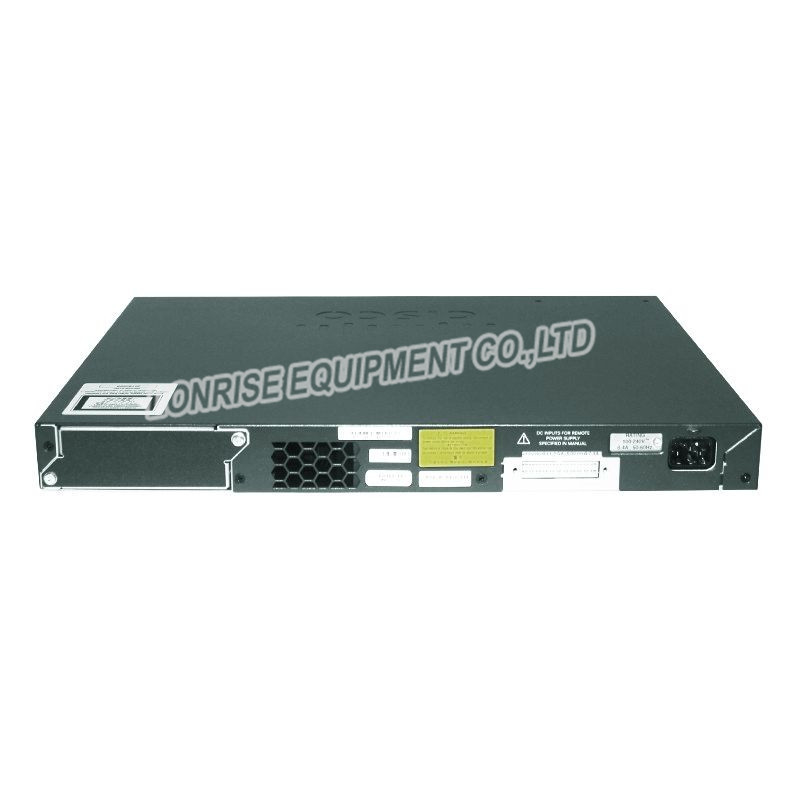

WS - C2960X - 24PS - L Catalyst 2960 - X Switch best price in stock
Cisco catalyst 2960X-24PS-L LAN Base stackable Layer 2 switch is comprised of 24 * 10/100/1000 Ethernet ports with POE+ and 4 * 1G SFP uplink interfaces. The industry standard IEEE802.3at PoE+ provides up to 30W per port.
| Product Code | WS-C2960X-24PS-L |
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | LAN Base |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 24 x Ethernet 10/100/1000 Gigabit ports |
| Available PoE Power | 370W |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Forwarding Bandwidth | 108Gbps |
| Switching Bandwidth | 216Gbps |
| RAM | 512MB |
| Flash Memory | 128MB |
| Dimensions | 44.5 cm x 36.8 cm x 4.5 cm |
| Package Weight | 10.65 Kg |
WS-C2960X-24PS-L Specification |
|
| General | |
| model info: | WS-C2960X-24PS-L |
| enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80G |
| Forwarding Performance | 71.4Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Package Weight | 23.48 Pounds (10.65Kg) |
| Weight | 12.8 Pounds (5.8 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 324,280 |
