Product Details:
|
| Name: | 5700-52P-LI-AC 02353174 Huawei Quidway S5700 Switch | Model: | S5700-52P-LI-AC |
|---|---|---|---|
| Downlink Ports: | 48 X 10/100/1000 Base-T Ethernet Ports | Uplink Ports: | 4 X GE SFP Ports |
| MAC Address: | 16K | VLAN: | 4K |
| Forwarding Performance: | 78 Mpps | Switching Capacity: | 256 Gbit/s |
| Stack: | Supported | Stack Ports: | -V200R001: The Last Two Uplink 1000Base-X Optical Ports -V200R002 And Later Versions: Four Uplink 1000Base-X Optical Ports |

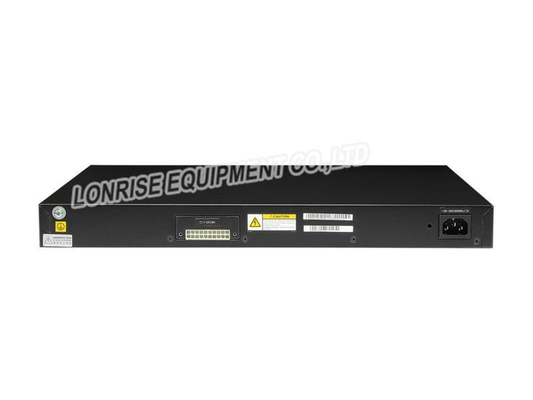

| Power: | AC 110/220 V & RPS1800 Redundant Power Supply | Heat Dissipation: | Forced Air Cooling By Built-in Fans |
| Memory (RAM): | 256 MB | Flash: | -V200R001: 64 MB -V200R002 And Later Versions: 200 MB |
| Dimensions (W X D X H): | 442.0mm × 310.0mm × 43.6mm | ||
| High Light: | 256 Gbit/s Huawei Quidway Switch,S5700 Huawei Quidway Switch,Ethernet Ports Huawei Network Switches |
||

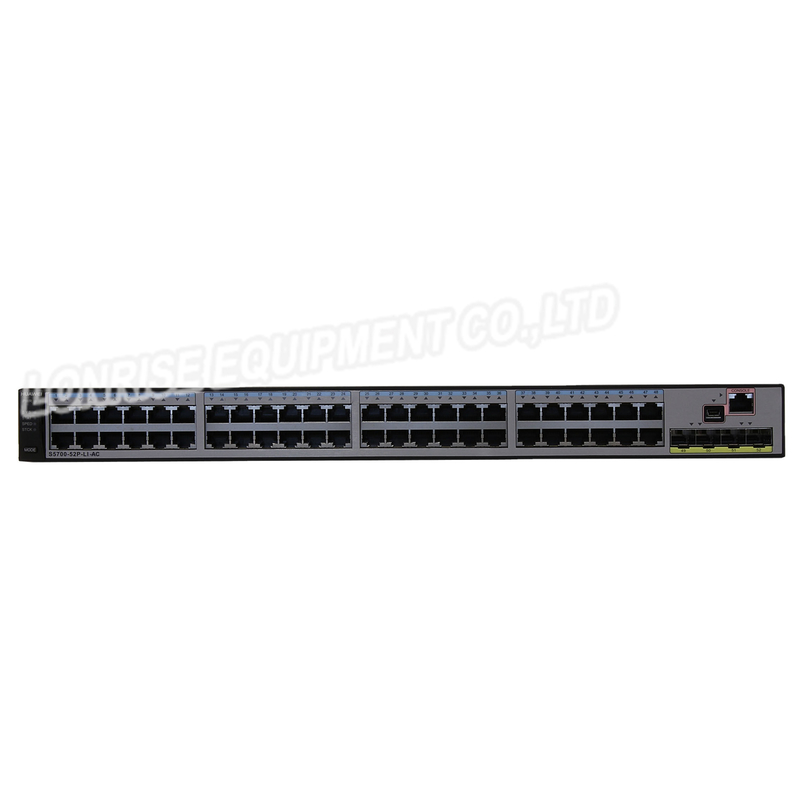

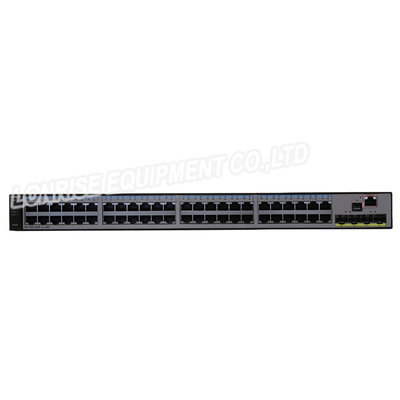

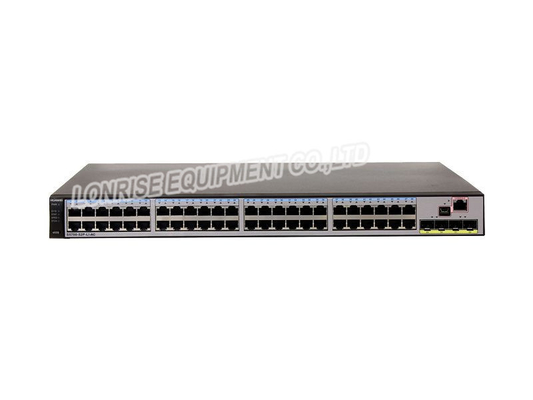

S5700 - 52P - LI - AC 02353174 Huawei Quidway S5700 Switch
Huawei S5700-LI series switches deliver super-flexible, easy-to-manage platform that optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s. The S5700-52P-LI-AC offers AC Power Supply, 48 x 10/100/1000 Base-T Ethernet Ports and 4 x GE SFP Ports.
S5700-52P-LI-AC Specification |
|
| Manufacturer | Huawei |
| Manufacturer Part Number | S5700-52P-LI-AC |
| Form Factor | Fixed, Stackable |
| Switch Port | 48 GE ports, 4 GE SFP ports |
| Power Over Ethernet (PoE) | Non-POE |
| Max Number of Stacks | 48Gbps |
| DRAM Memory | 256 MB |
| Flash Memory | 32 MB |
| Performance | |
| Forwarding performance | 78 Mpps |
| MAC address table | IEEE 802.1d compliance |
| 16 K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4 K VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| E-Trunk | |
| IP routing | Static routing, ECMP |
| RIPv1, RIPv2 and RIPng | |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination | |
| MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Management | |
| Management and maintenance | |
| Power Supply Specifications | |
| Power Device | Power supply |
| Power Redundancy | No |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.2cm |
| Depth | 31cm |
| Height | 4.36cm |
| Weight | 5.0kg |
| MTBF | 37years |
| System Software | |
| Software Version | Standard Version |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
the comparison of Huawei S5700-52P-LI-AC and S5700-52X-LI-AC
| Models | S5700-52P-LI-AC | S5700-52X-LI-AC |
| Downlink Ports | 48 x 10/100/1000 Base-T Ethernet Ports | 48 x 10/100/1000 Base-T Ethernet Ports |
| Uplink Ports | 4 x GE SFP Ports | 4 x 10GE SFP+ Ports |
| Power Supply | AC Power Supply | AC Power Supply |
