Product Details:
|
| Type: | Interface Card | Use: | Other |
|---|---|---|---|
| Dimensions (H X W X D): | 35.1 Mm X 397.2 Mm X 430.4 Mm | Maximum Power Consumption: | 45 W |
| Weight: | 2.22 Kg (4.89 Lb) | Part Number: | 03030MQP |

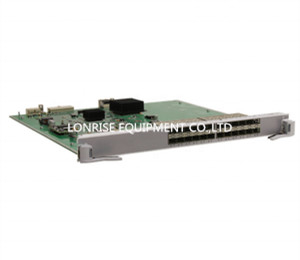

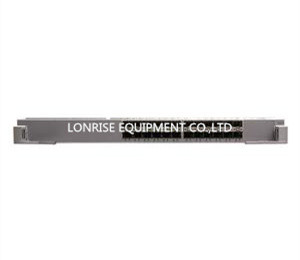

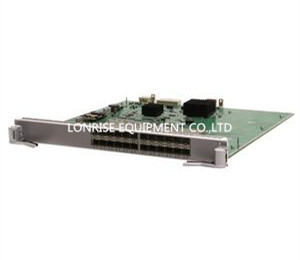

Best Price ES0D0G24SA00 24-Port 100/1000BASE-X Interface Card New Original
The ES0D0G24SA00 can be installed in:
Table 7-172 Switch chassis and software versions matching the card
|
Card Name |
S7700 Chassis |
|---|---|
| ES0D0G24SA00 |
S7703, S7706 and S7712 chassis: supported in V100R003C01 and later versions S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions |
Table 7-174 Indicators on the ES0D0G24SA00 panel
|
Number |
Indicator |
Color |
Description |
|---|---|---|---|
| 1 | ACT indicator of a lower optical port | Yellow | Blinking: The port is transmitting and receiving data. |
| 2 | ACT indicator of an upper optical port | ||
| 3 | LINK indicator of a lower optical port | Green | Steady on: A link has been established on the port. |
| 4 | LINK indicator of an upper optical port | ||
| 5 | RUN/ALM: running status indicator | Green |
Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting. |
| Red | Steady on: The card has failed and the fault requires manual intervention. | ||
| Yellow | Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.) |
