Product Details:
|
Model: | AP6050DN | Name: | Huawei Original AP6050DN Indoor Access Points Enterprise Wireless Access Point AP |
---|---|---|---|
Antenna Type: | Built-in Omni-directional Dual-band Antenna | Maximum Rate: | 2.53 Gbit/s |
Packaging Details: | New Original Package | Supply Ability: | 20 Piece/Pieces Per Month |
Type: | Indoor Ap | Condition: | Orginal |
Warranty: | 1 Year | Radio Protocols: | 802.11a/b/g/n/ac/ac Wave2 |
MIMo: | Spatial Streams 2.4GHz: 4x4:4; 5GHz: 4x4:4 | Maximum Number Of Users: | ≤ 512 |
Highlight: | Omni Directional Wireless Access Point AP,2.53 Gbit/s Indoor Access Point AP,Enterprise Huawei Wifi AP |

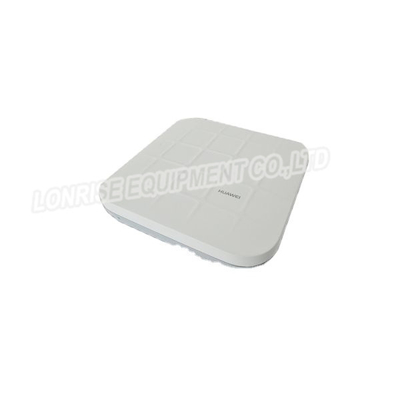

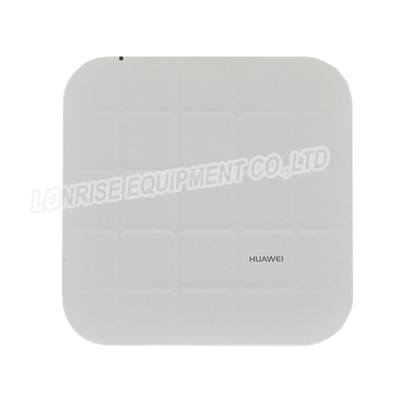

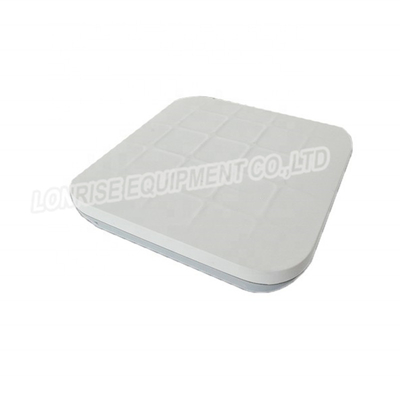

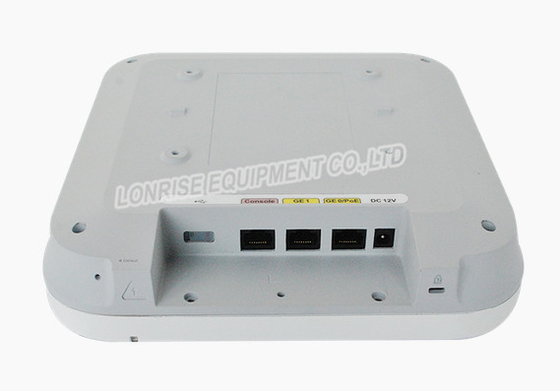

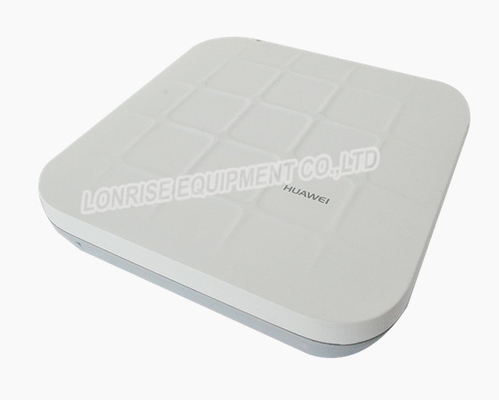

Huawei Original AP6050DN Indoor Access Points enterprise wireless access point AP
AP6050DN
AP6050DN Wireless Lan Access Point
Product Number | AP6050DN |
Antenna Type/Antenna Gain | Built-in omni-directional dual-band antenna |
Maximum Number of Users | ≤ 512 |
Maximum Transmit Power | 5 GHz: 26 dBm (combined power) |
MIMO: Spatial Streams | 4 x 4:4 |
Radio Protocol | 802.11a/b/g/n/ac/ac wave2 |
Maximum Speed | 2.53 Gbit/s |
Power Input | DC: 12 V ± 10% |
Maximum Power Consumption | 22.9W |
Operating Temperature |
|
Dimensions (H x W x D) | 220 mm x 220 mm x 60 mm |
Pack Weight(kg) | 1.8kg |
AP6050DN Specification |
|
Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
Power Input |
12V DC ±10% PoE power: In compliance with IEEE 802.3at |
Maximum Power Consumption |
22.9W (excluding the output power of the USB port) Note: The actual maximum power consumption depends on local laws and regulations |
Operating Temperature | –10°C to 50°C |
Antenna Type | Built-in omni-directional dual-band antenna |
Maximum Number of Users | ≤ 512 |
Maximum Transmit Power |
2.4 GHz: 26 dBm (combined power) 5 GHz: 26 dBm (combined power) Notes: The actual transmit power depends on local laws and regulations. You can adjust the transmit power of a 2.4G or 5G radio port to 1 dBm, at a step of 1 dB. |
MIMO:Spatial Streams | 2.4GHz: 4x4:4; 5GHz: 4x4:4 |
Radio Protocols | 802.11a/b/g/n/ac/ac wave2 |
Maximum Rate | 2.53 Gbit/s |
