Model Number: | AirEngine 5761-10WD/11WD | Name: | AirEngine 5761 - 11WD Huawei's Wi - Fi 6 Remote Unit ( RU ) |
---|---|---|---|
Single Gross Weight: | 3.000 Kg | Package Type: | New In The Box. |
Warranty: | 1 Year | Single Package Size:: | 57X5X32 Cm |
Selling Units: | Single Item | Type: | Enterprise Wireless Access Point |
High Light: | Huawei WiFi 6 Wlan Access Point,AirEngine Huawei Access Point Outdoor,Remote Unit Huawei WiFi AP |

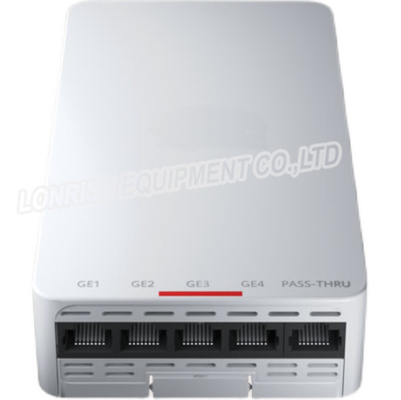

AirEngine 5761 - 11WD Huawei's Wi - Fi 6 remote unit ( RU )
AirEngine 5761-11WD is Huawei's Wi-Fi 6 remote unit (RU). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing userswireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.

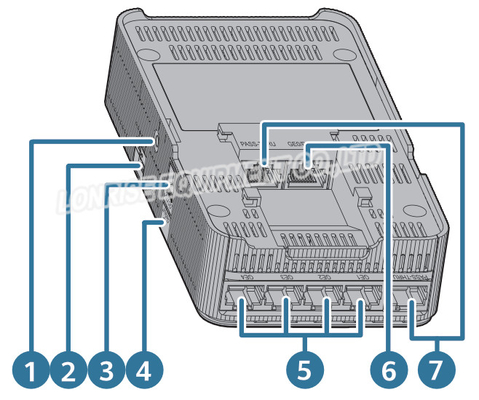

No. |
Name |
Description |
---|---|---|
1 | Captive screw hole | Accommodates a captive screw. |
2 | USB | Connects only to an IoT device for IoT application extension and supports USB 2.0. |
3 | DC 12V | Connects to a 12 V power adapter. |
4 | Default | Restores factory settings and restarts the device when you hold down the button more than 3 seconds. |
5 | GE1 to GE4 | 10/100/1000M auto-sensing port that connects to the wired Ethernet. |
6 | GE0/PoE_IN | 10/100/1000M auto-sensing port that connects to the wired Ethernet and supports PoE input. |
7 | PASS-THRU | A pair of RJ45 pass-through ports for transparent transmission and interconnection with Ethernet cables or telephone lines. |
