| Model Number: | AP4050DN-HD | Power Input: | 12V DC ±10% PoE Power: In Compliance With IEEE 802.3af/at |
|---|---|---|---|
| Operating Temperature: | -10°C To 50°C | Maximum Transmit Power: | 2.4 GHz: 22 DBm (combined Power) 5 GHz: 22 DBm (combined P |
| Radio Protocols: | 802.11a/b/g/n/ac/ac Wave2 | Application: | Indoor |
| Dimensions (H X W X D): | 65 Mm X 240 Mm X 334 Mm | Maximum Power Consumption: | 11.8W (in 802.3af PoE Or DC Mode) 13.9W |
| Antenna Type: | Built-in High-density Smart Antennas | Maximum Number Of Users: | ≤ 512 |
| Power) MIMO: | Spatial Streams: 2 X 2:2 MU/SU-MIMO | Highest Rate: | 1.267 Gbit/s |
| High Light: | Indoor Wifi Access Point 11.8W,AP4050DN - HD Indoor Access Points,Huawei Indoor Wireless Access Point |
||

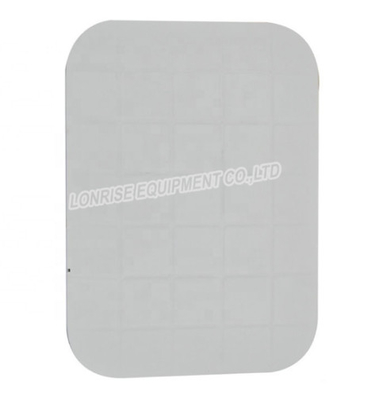

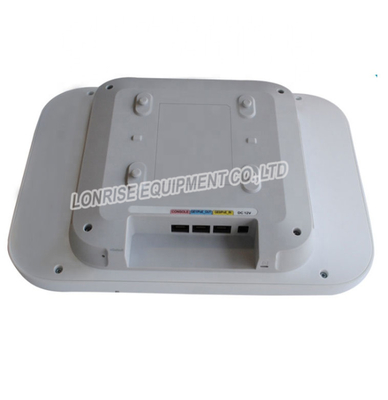

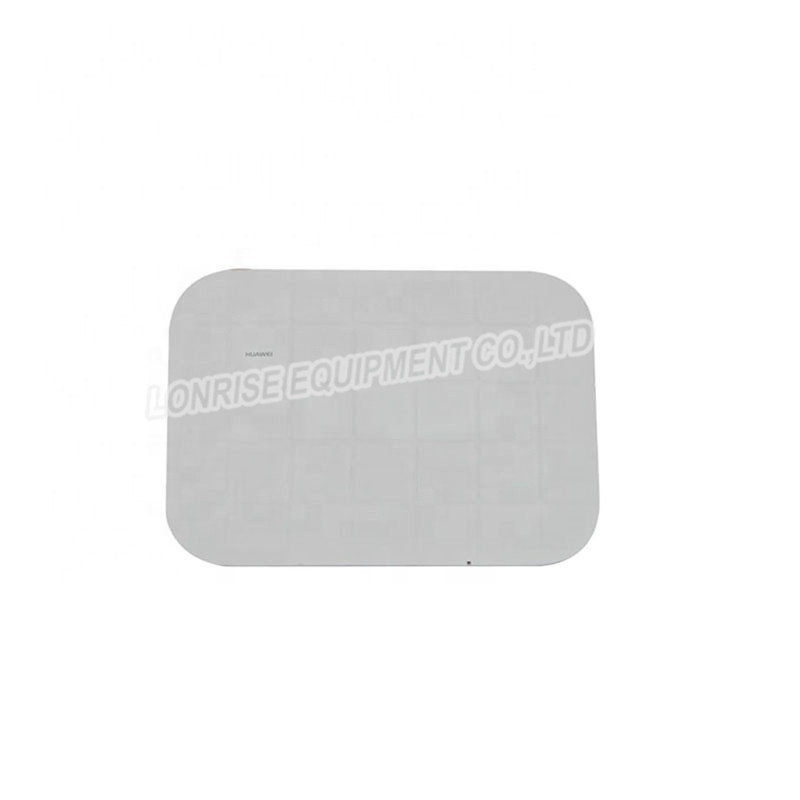

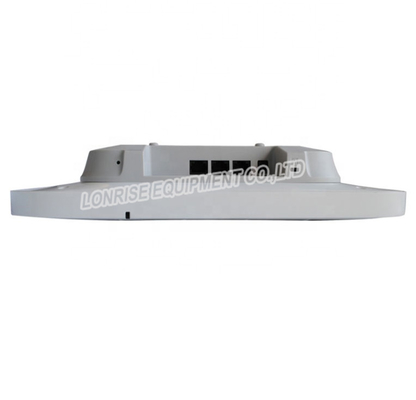

AP4050DN - HD Huawei Indoor Access Points Enterprise High Density Wireless Ap Dual Band
Huawei AP4050DN-HD is a wireless Access Point (AP) that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams, providing a rate of up to 1.267 Gbit/s. The AP4050DN-HD HAs built-in high-density smart antennas and is applicable to indoor high-density stadiums.
AP4050DN-HD Specification |
|
| Dimensions (H x W x D) | 65 mm x 240 mm x 334 mm |
| Interface Type |
1 x 10/100/1000M self-adaptive Ethernet interface (RJ45) Console interface(RJ45 x 1) |
| LED Indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| Power Input |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3af/at |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Altitude | –60 m to +5000 m |
|
Dustproof and Waterproof Grade |
IP41 |
| Atmospheric Pressure | 53 kPa to 106 kPa |
| Antenna Type | Built-in dual-band directional antenna (beamwidth: 30 degrees) |
| Maximum Number of Concurrent Users | ≤ 512 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 1.267 Gbit/s |
| Maximum Transmit Power | 20 dBm on 2.4 GHz and 5 GHz frequency bands |
| Power Increment | 1 dBm |
| Receiver Sensitivity |
2.4 GHz 802.11b (CCK): –101 dBm @ 1 Mb/s; –89 dBm @ 11 Mb/s 2.4 GHz 802.11g (non-HT20): –95 dBm @ 6 Mb/s; –79 dBm @ 54 Mb/s 2.4 GHz 802.11n (HT20): –93 dBm @ MCS0; –75 dBm @ MCS7 2.4 GHz 802.11n (HT40): –90 dBm @ MCS0; –73 dBm @ MCS7 5 GHz 802.11a (non-HT20): –95 dBm @ 6 Mb/s; –78 dBm @ 54 Mb/s 5 GHz 802.11n (HT20): –95 dBm @ MCS0; –75 dBm @ MCS7 5 GHz 802.11n (HT40): –92 dBm @ MCS0; –73 dBm @ MCS7 5 GHz 802.11ac (VTH20): –95 dBm @ MCS0NSS1; –72 dBm @ MCS8NSS1 5 GHz 802.11ac (VTH40): –92 dBm @ MCS0NSS1; –67 dBm @ MCS9NSS1 5 GHz 802.11ac (VTH80): –87 dBm @ MCS0NSS1; –62 dBm @ MCS9NSS1 |
| SKU | AP4050DN-HD |
| Dimensions (H x W x D) | 65 x 240 x 334 mm |
| Power Input | DC: 12V ±10% PoE power: In compliance with IEEE 802.3af/at |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in high-density directional antennas (beamwidth: 30 degrees) |
| Maximum Number of Users | ≤ 512 |
| MIMO: Spatial Streams | 2 x 2:2 MU/SU-MIMO |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 1.267 Gbit/s |
| Product Name | AP4050DN-HD | AP4050DN | AP4050DN-E |
| Dimension | 35 mm x 170 mm x 170 mm | 35 mm x 170 mm x 170 mm | 53 mm x 220 mm x 220 mm |
| Power Input |
DC: 12V ±10% PoE power: In compliance with IEEE 802.3af/at |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3af/at |
DC: 12V ±10% PoE power supply: In compliance with IEEE 802.3at |
| Antenna Type | Built-in dual-band directional antenna (beamwidth: 30 degrees) | Built-in omnidirectional dual-band antennas | Built-in dual-band directional antenna (beamwidth:30 degrees) |
| Operating Temperature | –10°C to +50°C | -10°C to +50°C | –10°C to +50°C |
| Maximum Number of Concurrent Users | ≤ 512 | ≤ 512 | ≤ 512 |
