Product Details:
|
| Packaging Details: | New Original Package | Product: | AP4050DE-B-S |
|---|---|---|---|
| Type: | Indoor Ap | Antenna Gain: | 2.4 GHz: 3 DBi 5 GHz: 3 DBi |
| Maximum Number Of VAPs For Each Radio: | 16 | Maximum Number Of Users: | Fit AP: ≤ 512 Fat AP: ≤ 512 Cloud AP: ≤ 512 |
| Antenna Type: | Built-in Dual-band Smart Omnidirectional Antenna | Name: | AP4050DE-B-S Wireless |
| Detail: | AP4050DE-B-S Host (11ac Wave 2, Indoor Type, 2x2 Dual Frequency, Built-in Smart Antenna, GE, Bluetooth) | ||
| High Light: | Huawei Optical WIFI Access Point,802.11ac WIFI Access Point,AP Fiber Huawei Access Point Outdoor |
||

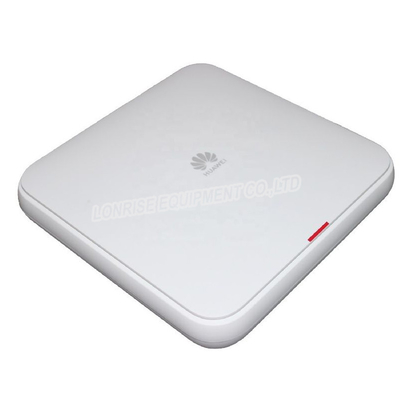

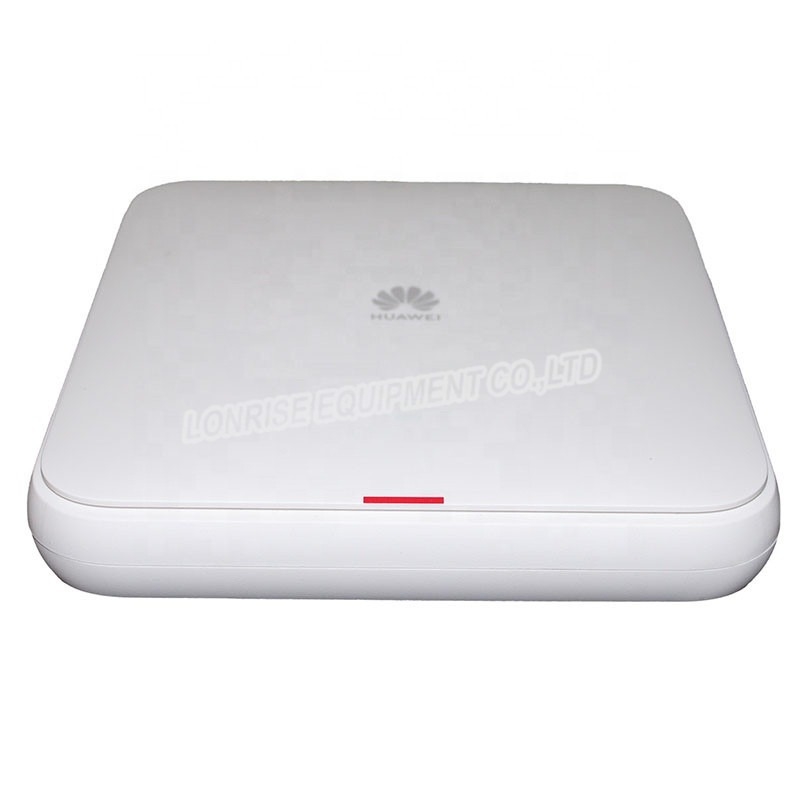

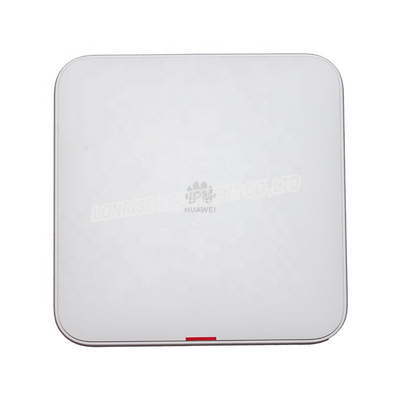

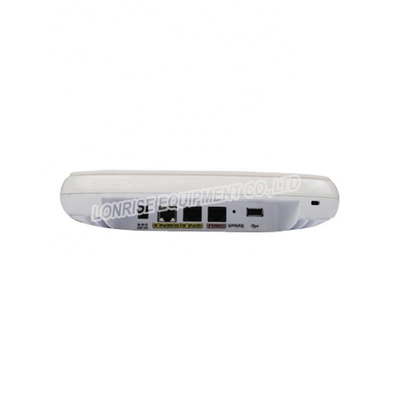

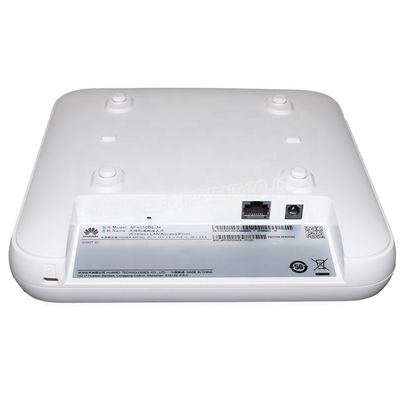

Huawei Original New Ap4050de - b - s 802 . 11ac Ap Fiber Optical Wifi Access Point
Huawei AP4050DE-B-S is a wireless access point (AP) tailored to SMB that supports 802.11ac Wave 2, 2 x 2 MU-MIMO, and two spatial streams. It provides comprehensive service support capabilities and features high reliability, high security, simple network deployment, automatic AC discovery and configuration, and real-time management and maintenance, which meets network deployment requirements. The AP has built-in smart antennas, complies with 802.11n and 802.11ac protocols, and can provide gigabit STA access, which greatly improves user experience on wireless networks and applies to small- and medium-sized enterprises, airports and stations, stadiums, cafes, and recreation centers.
| Product Code | AP4050DE-B-S |
| Antenna type | Built-in dual-band smart omnidirectional antenna |
| Antenna gain |
2.4 GHz: 3 dBi 5 GHz: 3 dBi |
| Maximum number of users |
Fit AP: ≤ 512 Fat AP: ≤ 512 Cloud AP: ≤ 512 |
| Maximum number of VAPs for each radio | 16 |
| Maximum transmit power |
2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) |
| Channel rate supported |
802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 to 400 Mbit/s 802.11ac: 6.5 to 867 Mbit/s |
Huawei AP4050DE-B-S provides these features:
-802.11ac Wave 2 compliance, MU-MIMO, delivering services simultaneously on 2.4 GHz and 5 GHz frequencies
-Smart antenna array technology enables targeted signal coverage for mobile terminals, reduces interferences, and improves signal quality. Additionally, it supports millisecond-level switchover as terminals move.
-Built-in Bluetooth to implement precise positioning with eSight
-Support for the Fat, Fit, and cloud modes
-Support for cloud-based management and O&M of APs and services through SDN controller, reducing O&M costs
AP4050DE-B-S Specification |
|||
| Item | Description | ||
| Antenna type | Built-in dual-band smart omnidirectional antenna | ||
| Antenna gain |
|
||
| Maximum number of users |
Fit AP: ≤ 512 Fat AP: ≤ 512 Cloud AP: ≤ 512 NOTE: The actual number of users varies according to the environment. |
||
| Maximum number of VAPs for each radio | 16 | ||
| Maximum transmit power |
NOTE: The actual transmit power depends on local laws and regulations. |
||
| Maximum number of non-overlapping channels |
2.4 GHz (2.412 GHz to 2.472 GHz)
|
5 GHz (5.18 GHz to 5.825 GHz)
|
NOTE: The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance. |
| Channel rate supported |
|
||
