| Place Of Origin: | China | Certification: | CCC |
|---|---|---|---|
| Type: | Main Processing Unit | Dimensions (H X W X D): | 35.1 Mm X 397.2 Mm X 430.4 Mm |
| Maximum Power Consumption: | 48 W | Part Number: | 03033EME |
| Weight: | 2.75 Kg (6.06 Lb) | Use: | Other |

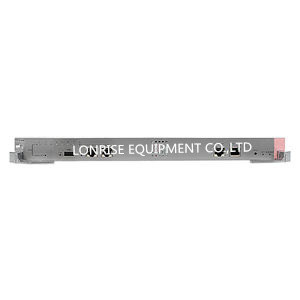

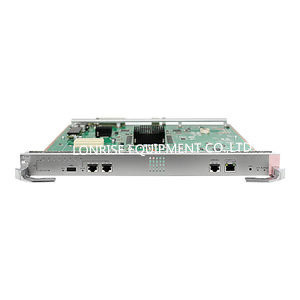

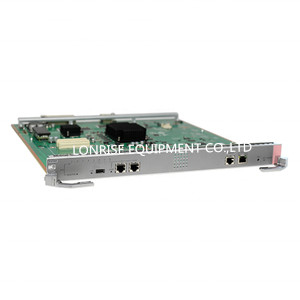

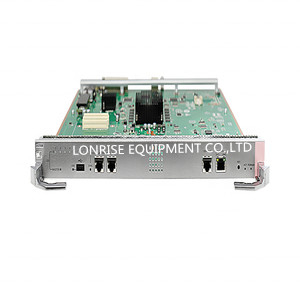

Huawei S12700E In Stock Main Processing Unit E 03033EME LST7MPUE0000 Gigabit
The LST7MPUE0000 is the main control unit for the S12700E-4, S12700E-8, and S12700E-12. It provides the control plane and management plane for the entire system and reserves a slot for clock daughter card.
|
Function |
Description |
|---|---|
| Basic functions | The LST7MPUE0000 is the system control and management unit for the S12700E-4, S12700E-8, and S12700E-12. It integrates the main control unit, clock unit, and system maintenance unit. |
| OAM |
The LST7MPUE0000 supports the following OAM functions:
|
| Memory | 16 GB |
| NAND Flash |
2 GB The system configuration data, startup files, system software package, and system logs are saved in the NAND Flash by default. |
| Redundancy backup |
1+1 hot standby Main control board is mandatory for switches. Each switch must be configured with one or two main control boards. When one main control board is configured for a switch, the main control board can be installed in either main control board slot of the switch. When two main control boards are configured, the two main control boards work in hot standby mode to improve reliability of the switch. The active and standby main control boards monitor the status of each other. If the active main control board fails, the standby main control board automatically becomes active to ensure uninterrupted services. |
| Hot swapping |
Supported Before removing the active card, perform an active/standby switchover. |
