Huawei S5731-S24T4X 10GE Uplink 24 Port Gigabit Aggregation Switch CloudEngine

Large Image : Huawei S5731-S24T4X 10GE Uplink 24 Port Gigabit Aggregation Switch CloudEngine

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC
Model Number:	S5731-S24T4X

Contact Now

Huawei S5731-S24T4X 10GE Uplink 24 Port Gigabit Aggregation Switch CloudEngine

Description

Part Number:	Huawei S5731-S24T4X	Switch Capacity:	128 Gbps/672 Gbps
Single Package Size:	1X1X16 Cm	Single Gross Weight:	17.000 Kg
Condition:	Brand New	Ports:	24
Function:	LACP, QoS, SNMP, VLAN Support	Transmission Rate:	10/100/1000Mbps
Communication Mode:	Full-Duplex & Half-Duplex
Highlight:	10GE Uplink Gigabit Aggregation Switch , 24 Port Gigabit Aggregation Switch , Huawei S5731-S24T4X Gigabit Aggregation Switch

Huawei S5731-S24T4X 10GE uplink 24 port gigabit aggregation switch CloudEngine

Technical specifications

The Huawei S5731-S24T4X is a switch from Huawei's S5731 series, designed for enterprise networks. It is a versatile and high-performance device that supports a range of applications, including data center, campus, and branch networking.

Key Features:

24 Gigabit Ethernet Ports: Provides 24 10/100/1000 Mbps Ethernet ports for high-speed connectivity.
4 10 Gigabit SFP+ Uplinks: Equipped with four 10G SFP+ ports for high-capacity uplinks, facilitating fast data transfer between switches or to core networks.
Layer 2 and Layer 3 Features: Supports both Layer 2 switching and Layer 3 routing capabilities, enabling efficient data handling and routing.
High Availability: Features such as redundancy, hot-swappable power supplies, and fan modules ensure reliable operation.

Use Cases:

Enterprise Campus Networks: Ideal for use in enterprise environments, providing reliable connectivity for end devices.
Data Center Interconnect: Can be used to connect servers and storage systems in data center environments.
Branch Office Connectivity: Suitable for connecting branch offices to the main network, providing secure and efficient access.

Benefits:

Scalability: Supports network growth with additional ports and uplink options, making it adaptable to changing needs.
Energy Efficiency: Designed with energy-saving features, reducing operational costs while maintaining performance.
Comprehensive Management: Offers a range of management options, including SNMP, RMON, and a web-based interface for easy configuration and monitoring.

Item	Description
Memory (RAM)	2 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	57.73 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	8.4 kg (18.52 lb)
Stack ports	10GE SFP+ ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	114 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	88 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

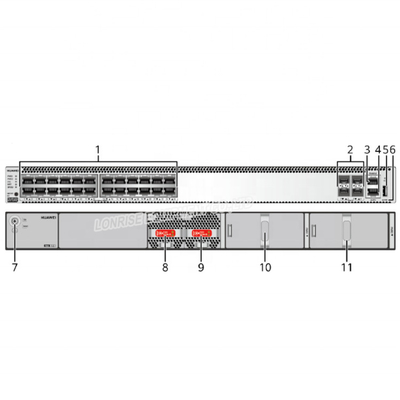

S5731-S24T4X (02353AHU-001 or 02353AHU-002) appearance.

Huawei S5731-S24T4X 10GE Uplink 24 Port Gigabit Aggregation Switch CloudEngine 0

1	Twenty-four 10/100/1000BASE-T ports	2	Four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking)
3	One console port	4	One ETH management port
5	One USB port	6	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
7	Ground screw NOTE: It is used with a ground cable.	8	Fan module slot 1 NOTE: Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust))
9	Fan module slot 2 NOTE: Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust))	10	Power module slot 1 NOTE: Applicable power module: PAC600S12-CB (600 W AC Power Module) PAC600S12-EB (600 W AC Power Module) PAC600S12-DB (600 W AC Power Module) (applicable in V200R020C10 and later versions) PDC1000S12-DB (1000 W DC Power Module) PAC150S12-R (150 W AC Power Module) PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions)
11	Power module slot 2 NOTE: Applicable power module: PAC600S12-CB (600 W AC Power Module) PAC600S12-EB (600 W AC Power Module) PAC600S12-DB (600 W AC Power Module) (applicable in V200R020C10 and later versions) PDC1000S12-DB (1000 W DC Power Module) PAC150S12-R (150 W AC Power Module) PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions)	-	-

Huawei S5731-S24T4X 10GE Uplink 24 Port Gigabit Aggregation Switch CloudEngine 2
