| Model Number: | S5735-S24P4X | Product Name: | Network Management Optical Fiber Switch S5735-s24p4x |
|---|---|---|---|
| Switch Capacity: | 56 Gbit/s/336 Gbit/s | Function: | VLAN Support |
| Ports: | 24 | Performance: | 42 Mpps |
| Communication Mode: | Full-Duplex & Half-Duplex | Transmission Rate: | 10/100/1000Mbps |
| High Light: | S5735-S24P4X Huawei Network Switches,24 Gigabit Optical Huawei Network Switches,8 Port Power Optical Huawei Network Switches |
||

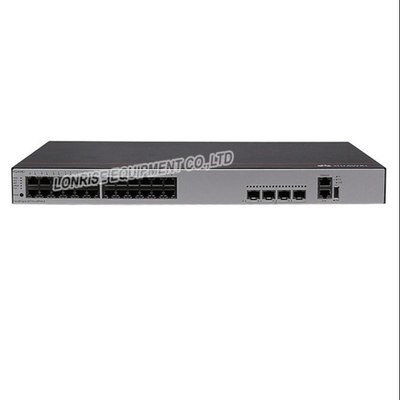

Huawei S5735-S24P4X 24 Gigabit Optical 8-port Power 40 Gigabit 3 Layer
S5735-S24T4X appearance appearance
Echnical specifications
|
Item |
Description |
|---|---|
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 59.88 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 7.39 kg (16.29 lb) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load)
|
51 W |
| Operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Short-term operating temperature |
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 58.9 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number |
98010940
|
