Product Details:
|
| Porduct Name: | S5735-L24T4X-A1-Huawei S5700 Series Switches | Key Word: | CloudEngine S5735-L24T4X-A1 Airengine Huawei Network Switches |
|---|---|---|---|
| Part Number: | 98011302 | Model: | S5735-L24T4X-A1 |
| Typical Power Consumption [W: | 4 | Maximum Power Consumption [W: | 4 |
| Weight Without Packaging [kg(lb): | 4 | Weight With Packaging [kg(lb): | 4 |
| High Light: | S5735-L24T4X-A1 Huawei Network Switches,PNP Button Huawei Network Switches,CE Huawei Network Switches |
||
Huawei S5735 L24T4X A1 airengine huawei network switches Ports 4*10GE SFP+Ports AC Power
Basic information about the S5735-L24T4X-A1
| Item | Details |
|---|---|
| Description | S5735-L24T4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power) |
| Part Number | 98011302 |
| Model | S5735-L24T4X-A1 |
| First supported version | V200R020C10 |
| Other part numbers |
98011302-001: S5735-L24T4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, Only for India and Pakistan) |

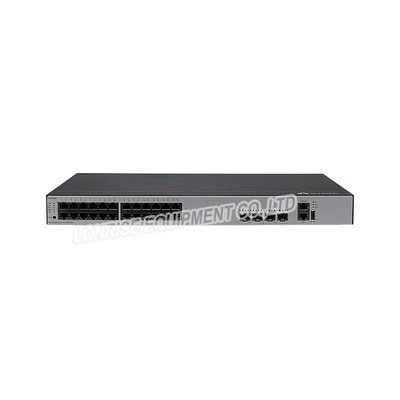

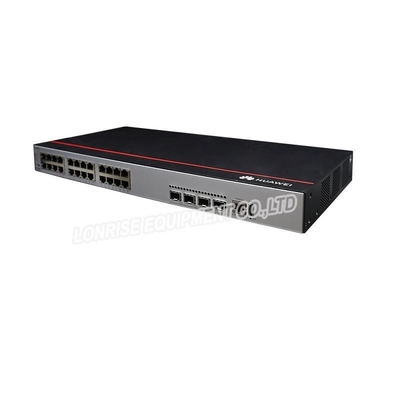

S5735-L24T4X-A1 appearance
| 1 | Twenty-four 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ ports |
| 3 | One console port | 4 | One USB port |
| 5 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
6 |
Ground screw NOTE:
It is used with a ground cable.
|
| 7 |
Jack for AC power cable locking strap NOTE:
The AC power cable locking strap is not delivered with the switch.
|
8 |
AC socket NOTE:
It is used with an AC power cable. |
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 2.54 kg (5.6 lb) |
| Weight with packaging [kg(lb)] | 3.48 kg (7.67 lb) |
| Typical power consumption [W] | 33.2 W |
| Typical heat dissipation [BTU/hour] | 113.28 BTU/hour |
| Maximum power consumption [W] | 45.6 W |
| Maximum heat dissipation [BTU/hour] | 155.59 BTU/hour |
| MTBF [year] | 62.05 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 39 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] |
-5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) -5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
| Short-term operating temperature [°C(°F)] | Not supported |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used. |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] |
98011302: Common mode: ±7 kV 98011302-001: Common mode: ±2 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
