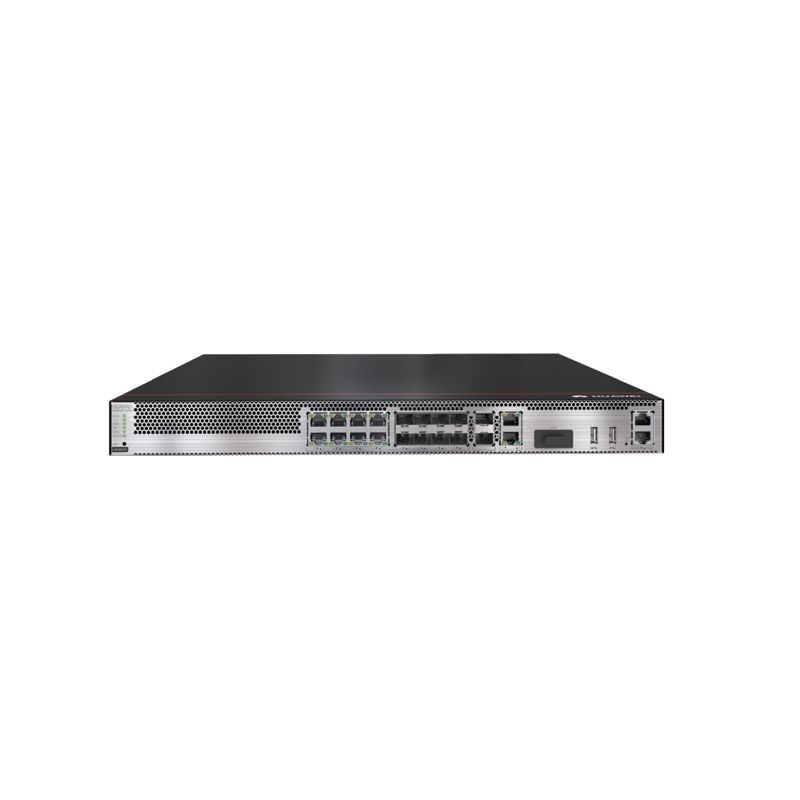

02353AFS Original USG6355E-AC Multi-Port Firewall
USG6355E-AC
| product price |
|
| Model configuration |
USG6325E-AC,USG6325E AC host (2*GE WAN+8*GE Combo+2*10GE SFP+,1 AC power supply,including SSL VPN 100 users ) |
| Classification |
USG6300E |
| Power support |
dual power |
| Form |
1U |
| Recommended belt machine volume |
500-700 |
| Throughput |
2Gbps |
| concurrent connections |
240万 |
| SSLVPN users |
500 |
| Related information |
BOM:02353AFQ |
https://shuaiqicn.en.alibaba.com/
S5735-L24P4S-A Overview
Establish Fast and Easy-to-use Network by Powerful Switches.
Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735-L24P4S-A |
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
Product Details
Figure 1 shows the front ports of S5735-L24P4S-A.
Note:
| ① |
24 10/100/1000BASE-T ports |
④ |
One PNP button |
| ② |
Four 1000BASE-X ports |
⑤ |
One USB port |
| ③ |
One ETH management port |
⑥ |
One console port |
Figure 2 shows the back view of S5735-L24P4S-A.
Note:
| ① |
Ground screw |
| ② |
Jack for AC power cable locking strap |
| ③ |
AC socket |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
| Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
| Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
| Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
Get More Information
Do you have any question about the S5735-L24P4S-A?
Contact us now via Live Chat or sales@router-switch.com.
we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4
S5735-L24P4S-A Specification
S5735-L24P4S-A Specification
|
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
| MAC Features |
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting |
| VLAN Features |
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping |
| IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) |
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations |
| Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) |
