USG6307E-AC Overview:

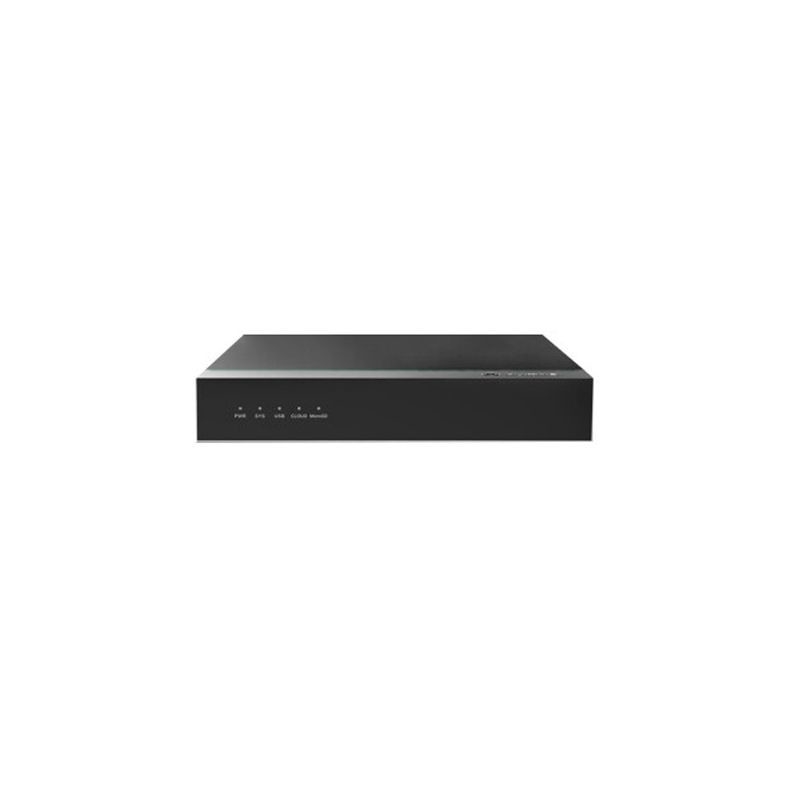

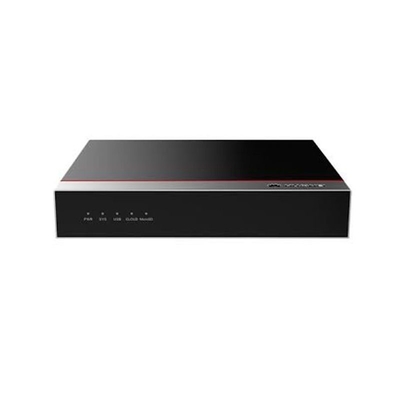

USG6307E-AC is the Huawei firewall with 10*GE RJ45+2*GE SFP, and 1*Adapter.
Quick Spec
Table 1 shows the quick spec.
| Model |
USG6307E-AC |
| Interfaces |
2 × GE (SFP) + 10 × GE; 1 × USB3.0 |
| Local storage |
Optional, Expend to 64GB/128GB Micro-SD |
| Product form |
Desktop |
| Dimension (W × D × H) |
250mm × 210mm × 43.6mm |
| Power |
36W |
| Power input voltage |
AC adapter, support 100-240V |
| Power redundancy |
not support |
USG6307E-AC Specification
USG6307E-AC Specification
|
| Interfaces |
2 × GE (SFP) + 10 × GE; 1 × USB3.0 |
| Local storage |
Optional, Expend to 64GB/128GB Micro-SD |
| Product form |
Desktop |
| Dimension (W × D × H) |
250mm × 210mm × 43.6mm |
| Power |
36W |
| Power input voltage |
AC adapter, support 100-240V |
| Power redundancy |
not support |
| Working Environment |
Temperature: 0~45°C
Humidity: 5%-95%
|
| Storage Environment |
Temperature: -40~70°C
Humidity: 5%-95%
|
| Integrated protection |
Integrate traditional firewall, VPN, intrusion prevention, antivirus, data leakage prevention, bandwidth management, Anti-DDoS, URL filtering, anti-spam and other functions in one, global configuration view and integrated policy management |
| Application identification and control |
Recognize 6000+ applications, access control accuracy to application functions, for example: distinguish WeChat text and voice. Combine application recognition with intrusion detection, anti-virus, and content filtering to improve detection performance and accuracy. |
| Bandwidth management |
On the basis of identifying service applications, the bandwidth used by each user/IP can be managed to ensure the network experience of key services and key users. Control methods include: limiting the maximum bandwidth or guaranteeing the minimum bandwidth, applying policy routing, modifying application forwarding priority, etc. |
| Intrusion Prevention and Web Protection |
Get the latest threat information as soon as possible, accurately detect and defend against attacks against vulnerabilities. It can protect against various attacks against the web, including SQL injection attacks and cross-site scripting attacks. |
| APT defense |
Link with local/cloud sandbox to detect and block malicious files.
The encrypted traffic does not need to be decrypted, and the big data analysis platform HiSec Insight is linked to realize the threat detection of encrypted traffic.
Actively respond to malicious scanning behaviors, and conduct behavior analysis through the linkage big data analysis platform HiSec Insight, quickly discover and record malicious behaviors, and realize real-time protection against corporate threats.
|
| Cloud management model |
The device initiates authentication and registration to the cloud management platform on its own, realizing plug and play, simplifying network creation and deployment.
Remote business configuration management, equipment monitoring and fault management, realizing cloud management of massive equipment.
|
| Cloud application security awareness |
Refined and differentiated control of enterprise cloud applications can be performed to meet the enterprise's management and control requirements for users' use of cloud applications. |
https://shuaiqicn.en.alibaba.com/
S5735-L24P4S-A Overview
Establish Fast and Easy-to-use Network by Powerful Switches.
Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735-L24P4S-A |
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
Product Details
Figure 1 shows the front ports of S5735-L24P4S-A.
Note:
| ① |
24 10/100/1000BASE-T ports |
④ |
One PNP button |
| ② |
Four 1000BASE-X ports |
⑤ |
One USB port |
| ③ |
One ETH management port |
⑥ |
One console port |
Figure 2 shows the back view of S5735-L24P4S-A.
Note:
| ① |
Ground screw |
| ② |
Jack for AC power cable locking strap |
| ③ |
AC socket |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
| Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
| Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
| Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
Get More Information
Do you have any question about the S5735-L24P4S-A?
Contact us now via Live Chat or sales@router-switch.com.
we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4
S5735-L24P4S-A Specification
S5735-L24P4S-A Specification
|
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
| MAC Features |
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting |
| VLAN Features |
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping |
| IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) |
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations |
| Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) |
