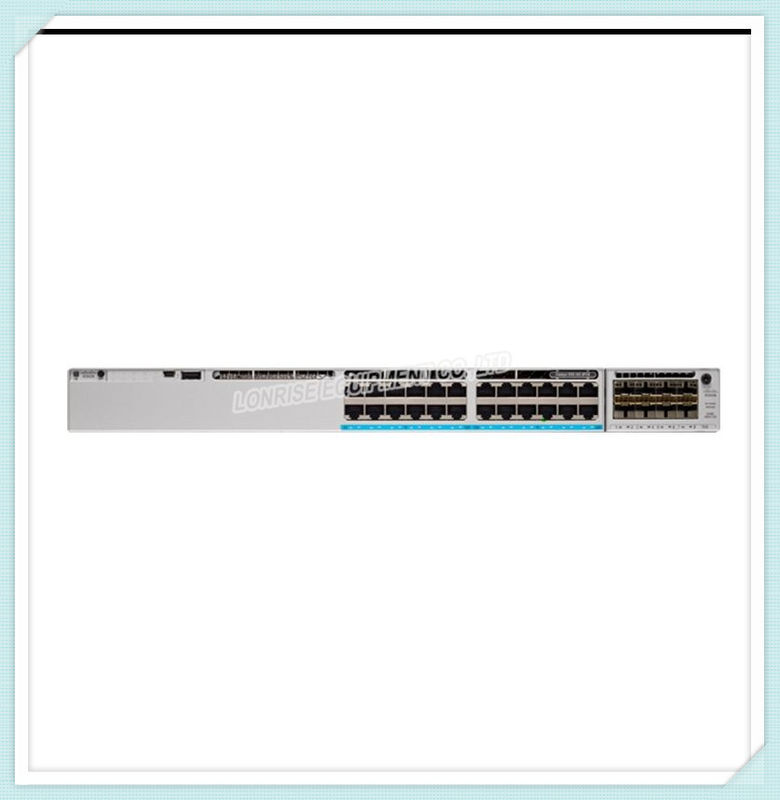

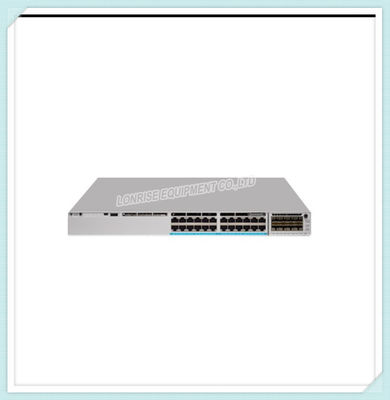

C9300-24P-E Overview
The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24P-E is 24-port PoE+, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
Quick Spec
Table 1 shows the quick spec.
| Product Code |
C9300-24P-E |
| Product Description |
Catalyst 9300 24-port PoE+, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports |
24 POE+ |
| Default AC power supply |
715W AC |
| Available PoE power |
445W |
| Dimensions (H x W x D) |
1.73 x 17.5 x 17.5 Inches |
| Weight |
16.33 Pounds |
The Accessories
Table 2 shows the recommended elements for the C9300-24P-E.
Compare to Similar Items
Table 3 shows the comparison between C9300-24P-E and C9300-24T-E.
| Product Code |
C9300-24P-E |
C9300-24T-E |
| Product Description |
Catalyst 9300 24-port PoE+, Network Essentials |
Catalyst 9300 24-port data only, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports |
24 POE+ |
24 |
| Default AC power supply |
715W AC |
350W AC |
| Available PoE power |
445W |
-- |
| Dimensions (H x W x D) |
1.73 x 17.5 x 17.5 Inches |
1.73 x 17.5 x 17.5 Inches |
| Weight |
16.33 Pounds |
16.33 Pounds |
https://shuaiqicn.en.alibaba.com/
S5735-L24P4S-A Overview
Establish Fast and Easy-to-use Network by Powerful Switches.
Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735-L24P4S-A |
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
Product Details
Figure 1 shows the front ports of S5735-L24P4S-A.
Note:
| ① |
24 10/100/1000BASE-T ports |
④ |
One PNP button |
| ② |
Four 1000BASE-X ports |
⑤ |
One USB port |
| ③ |
One ETH management port |
⑥ |
One console port |
Figure 2 shows the back view of S5735-L24P4S-A.
Note:
| ① |
Ground screw |
| ② |
Jack for AC power cable locking strap |
| ③ |
AC socket |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
| Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
| Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
| Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
Get More Information
Do you have any question about the S5735-L24P4S-A?
Contact us now via Live Chat or sales@router-switch.com.
we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4
S5735-L24P4S-A Specification
S5735-L24P4S-A Specification
|
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
| MAC Features |
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting |
| VLAN Features |
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping |
| IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) |
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations |
| Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) |
