Product Details:
|
| Part Number: | CR5D0EFGFA73 | Condition: | New With 1 Year Replacement Warranty |
|---|---|---|---|
| Shipment: | DHL,UPS,TNT, | Website: | Www.lonriseeqt.com |
| Attributes: | Hardware | Category: | Line Card |
| Sub Product Family: | NE40E | ||
| High Light: | Huawei 03054532 Network Interface Card,CR5D0EFGFA73,1000Base Integrated Line Processing Unit |
||
24-Port 100/1000Base-X-SFP integrated line processing board on Huawei NE40E.
GE optical module, providing features of GE optical interfaces.
FE optical module, providing features of FE optical interfaces.
Electrical interface SFP module, providing features of the 10M/100M/1000M electrical interfaces.
Intermixing of the preceding modules.

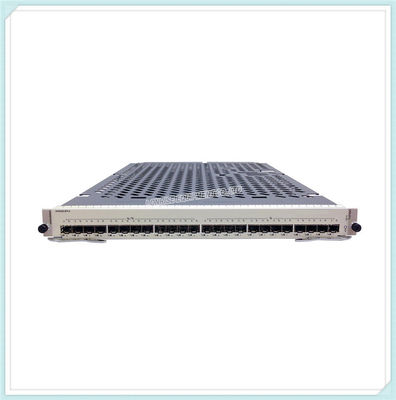

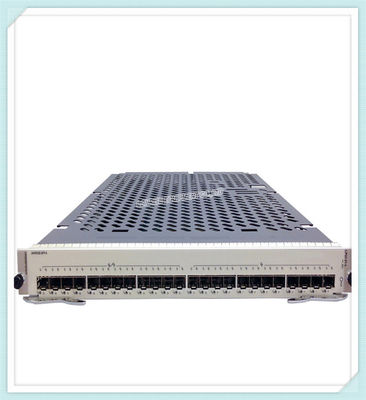

CR5D0EFGFA73 is an integrated line processing Unit L(LPUI-21-L) on Huawei NE40E, provides 24-Port 100/1000Base-X-SFP.
| Specifications | |||||
| Optical interface attributes |
Compliant with the selected SFP optical module for the attributes of SFP modules, see 155 Mbit/s SFP/eSFP Optical Module 1 Gbit/s Electrical Transceiver 1.25 Gbit/s SFP/eSFP Optical Module Low-speed BIDI Optical Module |
||||
| NMS |
Enhanced command-line interface Support for SNMP and MIBs |
||||
| Operating conditions |
Long-term ambient temperature: 0°C to 45°C (32°F to 113°F) Short-term ambient temperature: -5°C to +55°C (23°F to 131°F) Long-term relative humidity: 5% to 85% Short-term relative humidity: 5% to 95% |
||||
| Storage conditions |
Storage temperature: -40°C to +70°C (-40°F to 158°F) Storage humidity: 5% to 95% |
||||
| Physical specifications | |||||
| Dimensions(mm) | 40.1(H)x 399.2(W) x 535.6(D) | ||||
| Weight(kg) | 5.6 | ||||
| Power consumption (typical value)(W) | 155 | ||||
The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.
The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.Huawei NE40E Universal Service Router
NE40E-X16A Basic Configuration
NE40E-X16A Integrated DC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated AC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated DC Chassis Components (including 4 fan trays)
NE40E-X16A Integrated AC Chassis Components (including 4 fan trays)
Main Processing Unit B5 (16G Memory)
480 Gbit/s Switch Fabric Unit B (SFUI-480-B)
1 Tbit/s Switch Fabric Unit B (SFUI-1T-B)
NE40E-X8A Basic Configuration
NE40E-X8A Integrated Chassis DC Components (including 2 fan trays)
NE40E-X8A Integrated Chassis AC Components (including 2 fan trays)
Switch and Route Processing Unit A8 (16G Memory)
480 Gbit/s Switch Fabric Unit C (SFUI-480-C)
Switch and Route Processing Unit A9 (16G Memory)
1 Tbit/s Switch Fabric Unit C (SFUI-1T-C)
NE40E-X3A Basic Configuration
NE40E-X3A Integrated DC Chassis Components (including dual DC power)
NE40E-X3A Integrated AC Chassis Components (including dual AC power)
Main Processing Unit D4 (16G Memory)
NE40E-X16 Basic Configuration
NE40E-X16 Integrated Chassis Components (including 8 DC power)
Main Processing Unit B5 (16G Memory)
200 Gbit/s Switch Fabric Unit B (SFUI-200-B)
NE40E-X8 Basic Configuration
NE40E-X8 Integrated Chassis Components (including 4 DC power)
Switch and Route Processing Unit B5
200 Gbit/s Switch Fabric Unit C (SFUI-200-C)
Switch and Route Processing Unit A7
100 Gbit/s Switch Fabric Unit D (SFUI-100-D)
NE40E-X3 Basic Configuration
Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power
Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power
Main Processing Unit D3
Main Processing Unit D2
