Product Details:
|
| Product ID: | MA5800-X17 | Condition: | New With 1Year Replacement Warranty |
|---|---|---|---|
| Shipment: | DHL,UPS,TNT, | Slot Services: | 17 Slot Available |
| Switching Capacity: | 7 Tbit/s | XPON: | GPON/EPON |
| Uplink: | 10G | Compatible Boards: | GPUF, GPLF, GPSF, GPHF |
| Configurations: | 2*MPLA/MPLB+2*PILA | ||
| High Light: | Huawei Optical Line Terminal,MA5800-X17,GPON Optical Line Terminal |
||

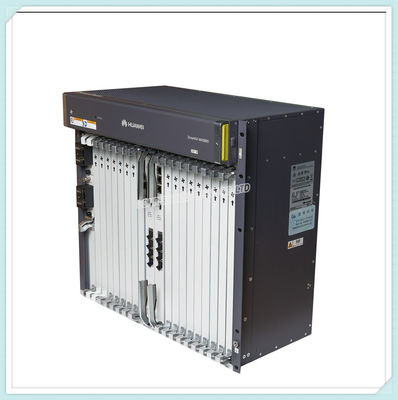

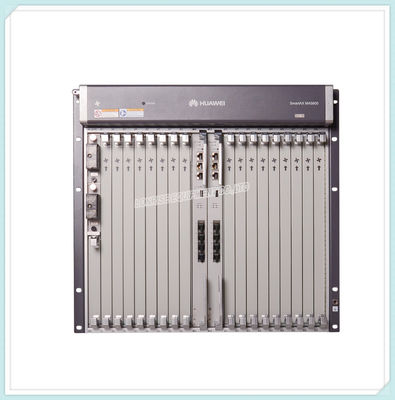

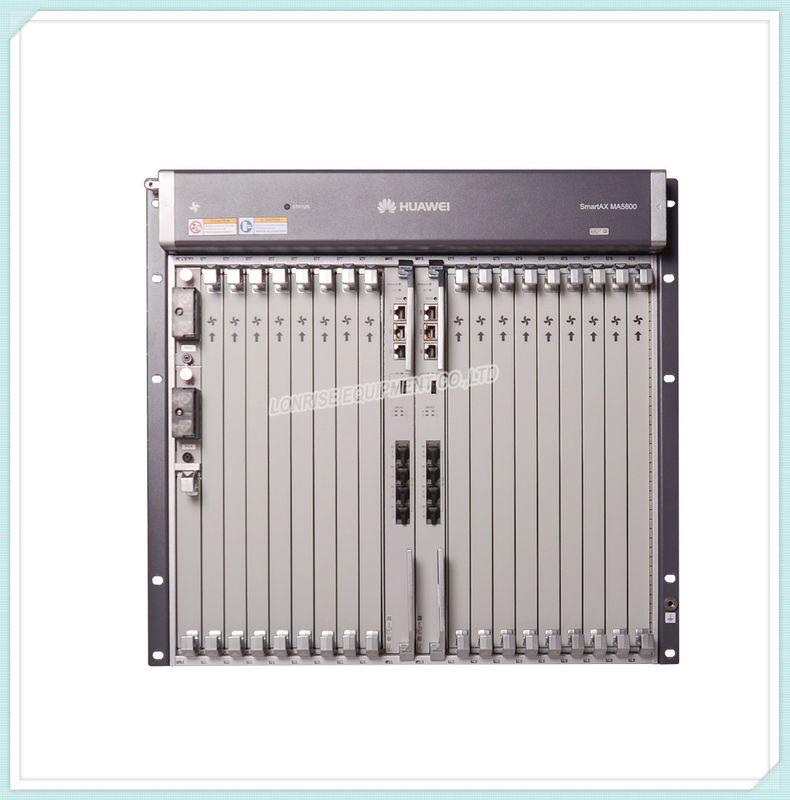

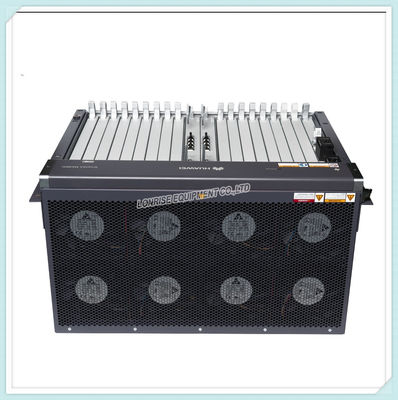

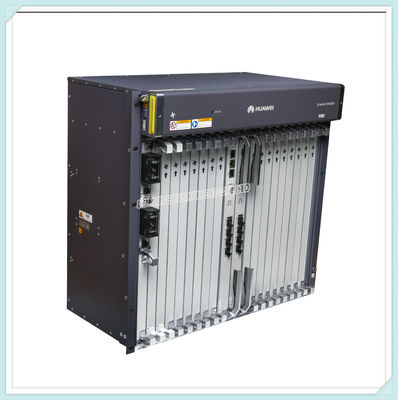

MA5800-X17 Overview
The Huawei MA5800 X17 chassis is a modular equipment for card insertion, it is a multiservice platform designed to build wider, faster and smarter access networks, offering a better service experience. It supports both the GPON standard and 10 GPON for the implementation of networks with a large aggregation capacity. This chassis is designed for a large network with capacity of 17 slots for 17 network cards.
Each network slot offers a throughput capacity of up to 200 Gbit / s, which guarantees access without locks for XG-PON and 40G-PON. This chassis supports up to 16,000 users of 4K videos without interruptions or cuts and without blocking.
The basic configuration can be:
- Double H901PILA power board
- 1 or 2 H901MPLA control cards (100 Gb / s) (H901MPLB 200 Gbit / s card)
- GPON OLT H901GPHF cards (To add OLT cards with SFP + included, consult us)
| CONCEPT | SPECIFICATIONS |
| Slot services | 17 slot available |
| Dimensions (W x D x H) | 442.00 mm x 268.7 mm x 263.90 mm (Excluding mounting brackets) |
| Maximum Number of Ports in a Subrack | 272 x GPON 816 x GE/FE 136 x 10G GPON 136 x 10G GE |
| Switching Capacity of the System | 7 Tbit/s |
| Maximum Number of MAC Addresses | 262.143 |
| Maximum Number of ARP/Routing Entries | 64.000 |
| Working Voltage Range | -38.4V DC ato-72V DC |
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option 82 |
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
| Ambient Temperature | -40°C to +65°C |
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
| Maintenance functions | Remotely managed using TR 069 by Felix |
