Product Details:
|
| Brand: | Cisco | Model: | NIM-4MFT-T1/E1= |
|---|---|---|---|
| Number Of Ports: | 4 | Configuration Description: | MFT Modules |
| Warranty: | 1 Year Replacement Warranty | Website: | Www.lonriseeqt.com |
| Serial Data (channel-group*): | 2 Per Port | ||
| High Light: | Cisco Optical Transceiver Module,MFT Optical Transceiver Module,NIM-4MFT-T1/E1= |
||

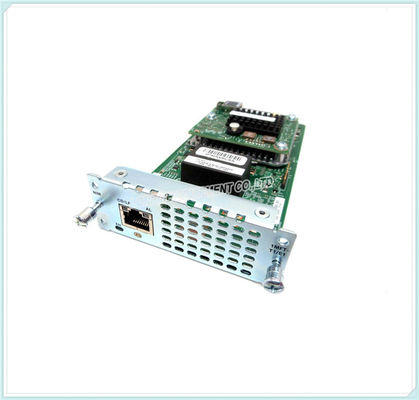

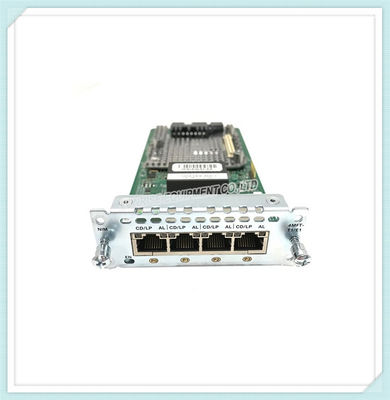

NIM-4MFT-T1/E1= is a Cisco Voice/WAN Module (4-port T1/E1) for ISR 4000 series. Cisco® Fourth-Generation 1-, 2-, 4-, and 8-Port T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4000 Integrated Services Routers (Figure 1). These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide superior flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface. These NIMs are not supported with Cisco 2900 and 3900 Integrated Services Routers.
NIM-4MFT-T1/E1= Specification |
|
| Number of Ports | 4 |
| Clear-Channel Data | Yes |
| MFT Packet Voice | Yes |
| Unstructured E1 (G.703) Support | No |
| Channelized Data | No |
| Configuration Description | MFT Modules |
| Data Only | |
| Serial data (channel-group*) | 2 per port |
| E1 unframed G.703 | Not Supported |
| Voice Only | |
| Voice channel associated signaling (CAS) (ds0-group**) |
24 per port (T1) 31 per port (E1) 1 per timeslot |
| Voice and Data | |
| PRI (pri-group***) | 1 per port |
|
Drop and insert (tdm-group****) |
24 per port (T1) 31 per port (E1) 1 per timeslot |
| Dimensions (H x W x D) | 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
| Environmental |
● Operating temperature: 0 to 50°C (32 to 122°F) ● Storage temperature: -20 to +65°C (-4 to 148°F) ● Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating |
| T1 Compliance (partial list) |
● TIA-968-A ● CS-03 ● Jate ● ANSI T1.403 |
| E1 Compliance (partial list) |
● TBR4, TBR12, and TBR13 ● ITU-T G.703, G.704, G.823, and I.431 ● S016 (Australia) |
| Weight | 0.44 lb (200g) |
Supported Platforms
| Model | Description |
| Cisco ISR4451-X/K9 | 1-2G system throughtput, 4 WAN/LAN ports, 4 SFP ports, 10 Core CPU, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs |
| Cisco ISR4431/K9 | 500Mbps-1Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs |
| Cisco ISR4351/K9 | 200Mbps-400Mbps system throughtput, 2 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC |
| Cisco ISR4331/K9 | Cisco 4000 Router, 100Mbps-300Mbps system throughtput, 2 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC |
| Cisco ISR4321/K9 | 50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC |
| Cisco ISR4221/K9 | 35Mbps-75Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM |
| ISR4461/K9 | Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane) |
| Part Number | Number of Ports | Clear-Channel Data | MFT Packet Voice | Unstructured E1 (G.703) Support | Channelized Data |
| NIM-1MFT-T1/E1 (=) | 1 | Yes | Yes | No | No |
| NIM-2MFT-T1/E1 (=) | 2 | Yes | Yes | No | No |
| NIM-4MFT-T1/E1 (=) | 4 | Yes | Yes | No | No |
| NIM-8MFT-T1/E1 (=) | 8 | Yes | Yes | No | No |
| NIM-1CE1T1-PRI (=) | 1 | Yes | Yes | Yes | Yes |
| NIM-2CE1T1-PRI (=) | 2 | Yes | Yes | Yes | Yes |
