Product Details:
|
| Product Model: | QSFP28-100G-ZR4 | Media Type:: | Single-Mode Fiber (SMF) |
|---|---|---|---|
| Connectors:: | Double LC | LR P/N: | HXQ100Z |
| Supported Data Rate:: | 103.125 Gbps | Minimum Optical Budget:: | 27dB (with Host FEC) |
| Warranty: | 1 Year Warranty | Transmitter Type:: | EML LAN WDM TOSA |
| Power:: | +3.3V | Maximum Distance:: | 80km |
| Supported Applications:: | 100G Ethernet (103.125Gbps) | ||
| High Light: | QSFP28-100G-ZR4,103.1Gbps Optical Transceiver Module,Double LC Transceiver Module |
||

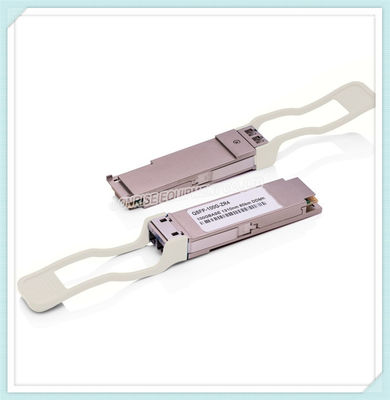

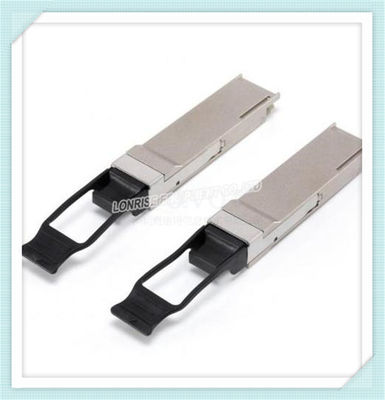

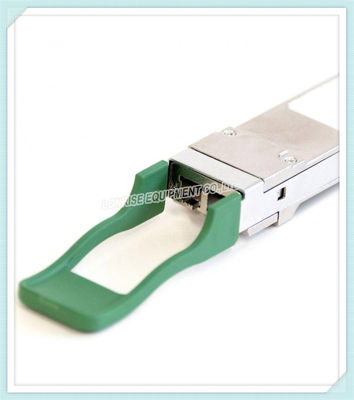

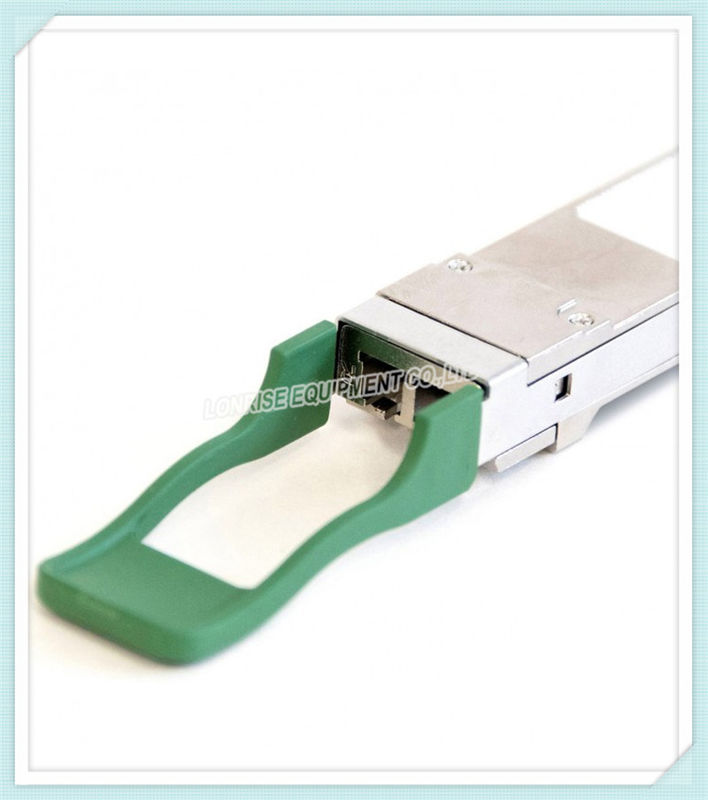

100G-QSFP28-80 is Multi-Vendor MSA Compatible 100GBASE-ZR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.
Specification
| Compatible | QSFP-100G-ZR4 | Vendor Name | LR |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
| Wavelength | 1310nm
|
Max Cable Distance | 80km@SMF |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | EML | Receiver Type | APD |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | 3~6.5dBm | Receiver Sensitivity | <-28dBm |
| Power Consumption | 6W | Extinction Ratio | 6dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Powerbudget | 31dB | Packaging Technology | BOX Packaging |
| FEC Function
|
Supported | Protocols | QSFP28 MSA Compliant |
| Application | 100GBASE Ethernet, Data Center, Telecom |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
