Product Details:
|
| Product Model: | QSFP28-100G-ER4 | Application: | 100GBASE Ethernet, Data Center |
|---|---|---|---|
| Form Factor: | SFP28 | LR P/N: | HXQ100EL(DML) |
| Max Data Rate: | 103.1Gbps | Wavelength: | 1296/1300/1305/1310nm |
| Warranty: | 1 Year Warranty | Max Cable Distance: | 25km-40km@SMF* |
| Connector: | LC Duplex | Transmitter Type: | 4x EML |
| Media: | SMF | ||
| High Light: | QSFP28-100G-ER4,LC Duplex Optical Transceiver Module,103.1Gbps Optical Transceiver Module |
||

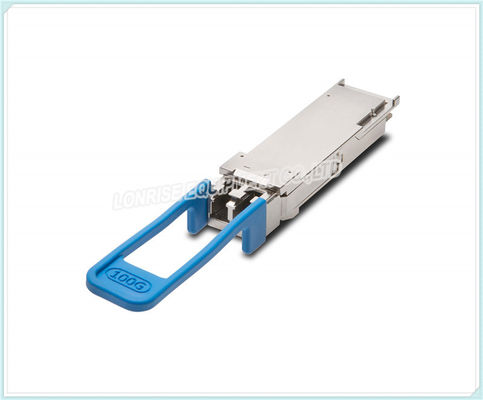

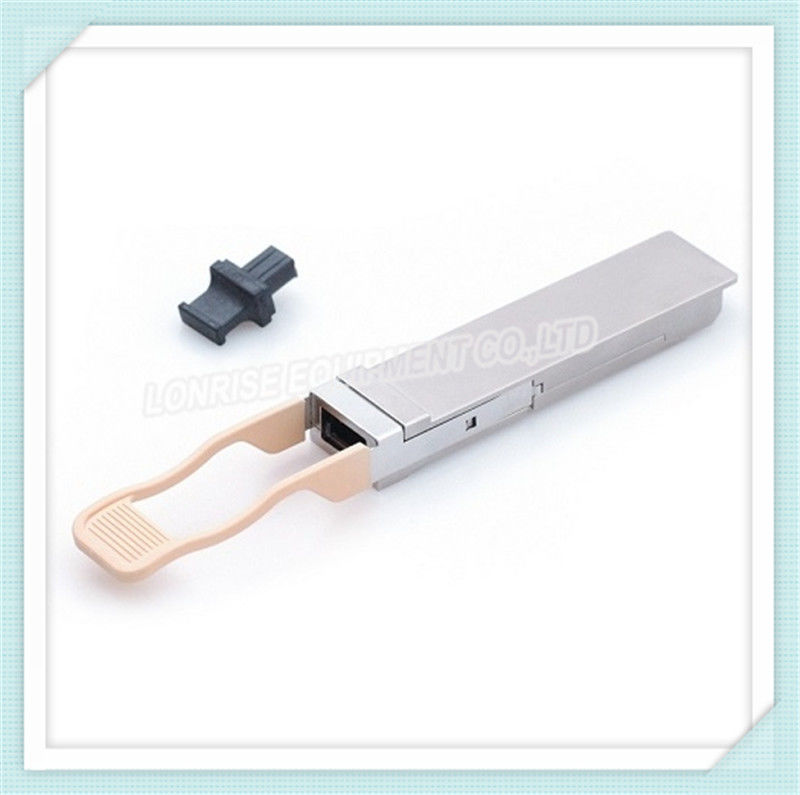

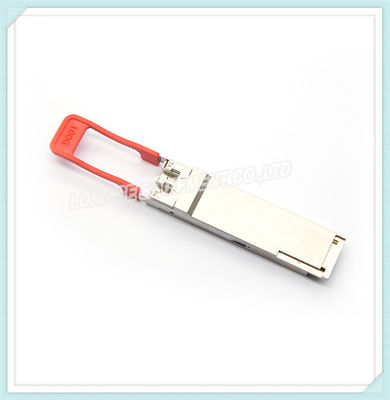

The 100GBASE-ER4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA and IEEE 802.3ba 100GBASE-ER4 Lite standard.
Specification
| Product model | QSFP28-100G-ER4 | Vendor Name | LR |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelengths | 1296/1300/1305/1310nm | Max Cable Distance | 25km-40km@SMF* |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | 4x EML | Receiver Type | APD |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -2.9~4.5dBm | Receiver Sensitivity | <-20.9dBm |
| Power Consumption | 4.5W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.5dB | Powerbudget | 18dB |
| Packaging Technology | BOX Packaging | FEC Function
|
Supported |
| Protocols | QSFP28 MSA Compliant | Application | 100GBASE Ethernet, Data Center |
