Product Details:
|
| Product Model: | QSFP28-100G-LR4 | Application: | 100GBASE Ethernet, Data Center |
|---|---|---|---|
| Form Factor: | SFP28 | LR P/N: | HXQ100L |
| Max Data Rate: | 103.125Gbps | Wavelength: | 1310nm |
| Warranty: | 1 Year Warranty | Max Cable Distance: | 10km@SMF |
| Connector: | LC Duplex | Transmitter Type: | 4 X LAN WDM DFB |
| Media: | SMF | ||
| High Light: | QSFP28-100G-LR4,10km DOM Optical Transceiver Module,1310nm DOM Optical Transceiver Module |
||

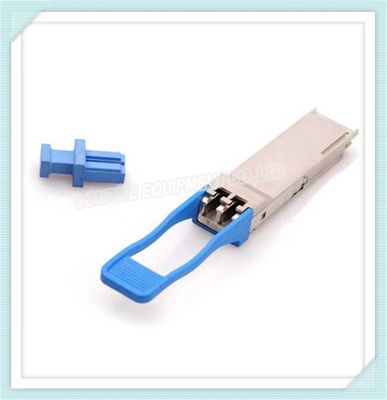

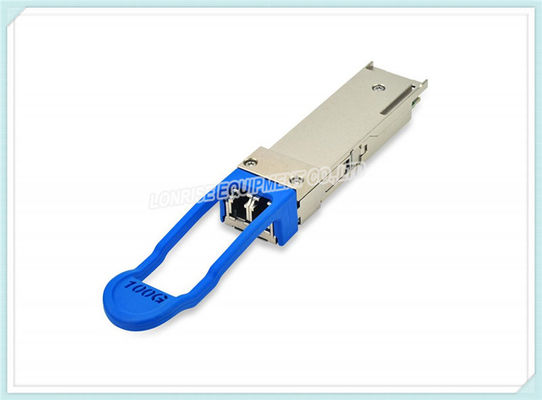

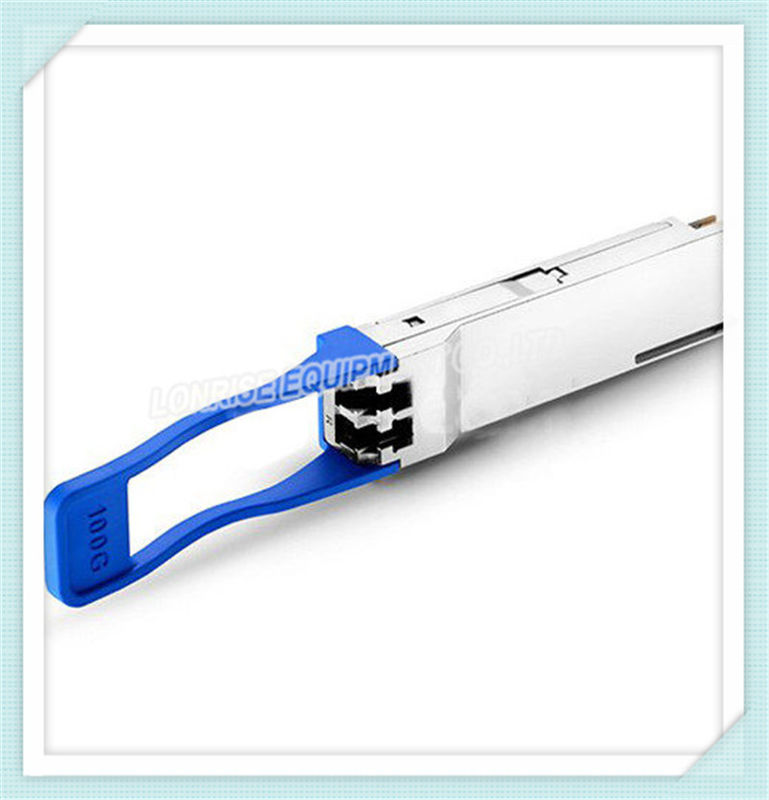

The 100GBASE-LR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA and IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard.
Specification
| Part No. | QSFP28-100G-LR4 | Vendor Name | LR |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
| Wavelength | 1310nm
|
Max Cable Distance | 10km@SMF |
| Connector | LC duplex | Media | SMF |
| Transmitter Type | 4 x LAN WDM DFB | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -4.3~4.5dBm | Receiver Sensitivity | <-8.6dBm |
| Power Consumption | 4W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.2dB | Powerbudget | 8.5dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function
|
Supported |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA Compliant | Application | 100GBASE Ethernet, Data Center |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
