Product Details:
|
| Product Model: | QSFP28-50G-ER | Form Factor: | QSFP28 |
|---|---|---|---|
| Max Data Rat53.125Gbpse: | 53.125Gbps | LR P/N: | HXQ50E |
| Max Cable Distance: | 40km | Wavelength: | 1310nm |
| Warranty: | 1 Year Warranty | Application: | 50GBASE Ethernet, 5G Network Mid/Backhaul |
| Connector: | LC Duplex | Power Consumption: | <4.5W |
| Modulation Format: | PAM4 | ||
| High Light: | QSFP28-50G-ER,1310nm DOM Transceiver Module,Dual CDR Optical Transceiver Module |
||

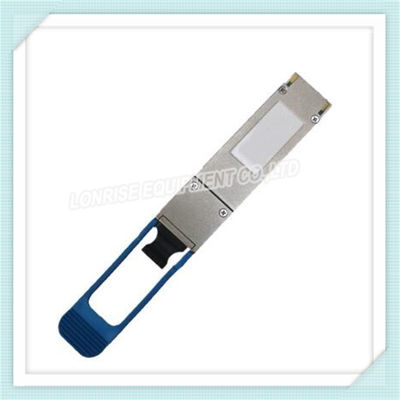

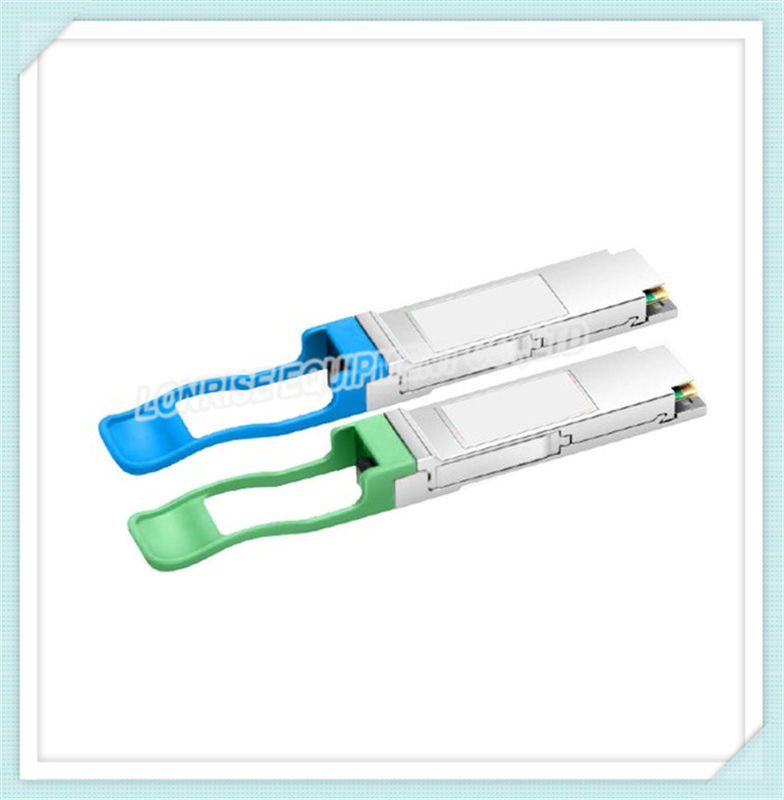

50GBASE-ER QSFP28 PAM4 Transceiver Module (SMF, 1310nm, 40km, LC, DOM)
Specification
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
| P/N | Product Description | Data Sheet | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach | Temperature (deg C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXQ50L | QSFP28 LR (PAM4) | 50G | 1310nm EML | PIN | -4.5 | 4.2 | -10.3 | 4.2 | 4.5 | 10km | 0~70 | |
| HXQ50E | QSFP28 ER (PAM4) | 50G | 1310nm EML | APD | 0.4 | 6.6 | -17.6 | -3.4 | 3.5 | 40km | 0~70 | |
| HXQ50LRBD | QSFP28 LR BIDI (PAM4) | 50G | 1310nm EML | PIN | -4.5 | 4.2 | -10.8 | 4.2 | 3.5 | 10km | 0~70 | |
| HXQ50ERBD | QSFP28 ER BIDI (PAM4) | 50G | 1310nm EML | APD | 0.4 | 6.6 | -17.6 | -3.4 | 3.5 | 40km | 0~70 |
