Product Details:
|
| Product Model: | QSFP28-50G-LR | Form Factor: | QSFP28 |
|---|---|---|---|
| Max Data Rat53.125Gbpse: | 53.125Gbps | LR P/N: | HXQ50L |
| Max Cable Distance: | 40km | Wavelength: | 1310nm |
| Warranty: | 1 Year Warranty | Application: | 50GBASE Ethernet, 5G Network Mid/Backhaul |
| Connector: | LC Duplex | Power Consumption: | <4.5W |
| Modulation Format: | PAM4 | ||
| Highlight: | DOM Transceiver Module,10km Optical Transceiver Module,QSFP28-50G-LR Transceiver Module |
||

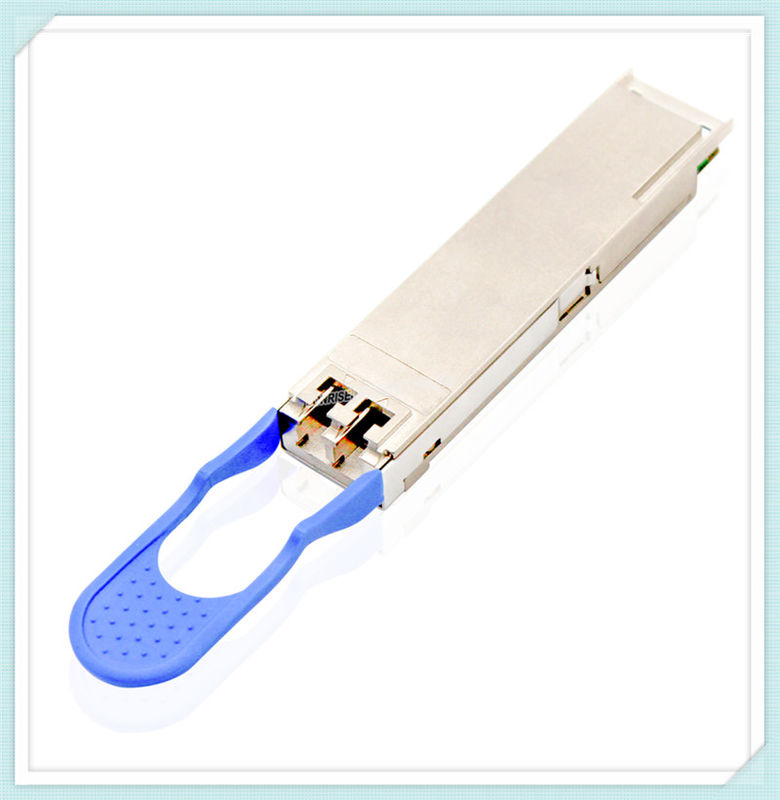

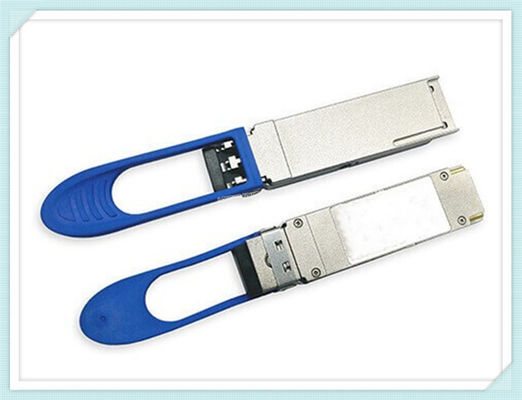

50GBASE-ER QSFP28 PAM4 Transceiver Module (SMF, 1310nm, 40km, LC, DOM)
Innolight 50G PAM4 LR4 and ER4 modules are designed for 5G mid-haul and back-haul applications. They adopt QSFP28 form factor and LC connector, and compliant with the QSFP28 MSA
Specification
| Part Number | QSFP28-50G-LR | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 53.125Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | LC duplex | Modulation Format | PAM4 |
| Transmitter Type | DFB | Receiver Type | PIN |
| Media | SMF | DDM/DOM | Supported |
| TX Power | -4.5~4.2dBm | Receiver Sensitivity | <-8.4dBm |
| Power Consumption | <3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | MSA Compliant | Application | 50GBASE Ethernet, 5G Network Mid/Backhaul |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
| P/N | Product Description | Data Sheet | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach | Temperature (deg C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXQ50L | QSFP28 LR (PAM4) | 50G | 1310nm EML | PIN | -4.5 | 4.2 | -10.3 | 4.2 | 4.5 | 10km | 0~70 | |
| HXQ50E | QSFP28 ER (PAM4) | 50G | 1310nm EML | APD | 0.4 | 6.6 | -17.6 | -3.4 | 3.5 | 40km | 0~70 | |
| HXQ50LRBD | QSFP28 LR BIDI (PAM4) | 50G | 1310nm EML | PIN | -4.5 | 4.2 | -10.8 | 4.2 | 3.5 | 10km | 0~70 | |
| HXQ50ERBD | QSFP28 ER BIDI (PAM4) | 50G | 1310nm EML | APD | 0.4 | 6.6 | -17.6 | -3.4 | 3.5 | 40km | 0~70 |
