Product Details:
|
| Product Model: | QSFP+ 40G-SRBD | Form Factor: | QSFP+ |
|---|---|---|---|
| Max Data Rate: | 40Gbps | LR P/N: | HXQ40SRBD |
| Max Cable Distance: | 150m@OM4 /100m@OM3/30m@OM2 | Wavelength: | 832nm - 918nm |
| Warranty: | 1 Year Warranty | Application: | 40 Gigabit Ethernet Interconnects, Data Center |
| Connector: | LC Duplex | Power Consumption: | 3.5W |
| Extinction Ratio: | 3.5dB | ||
| High Light: | QSFP+ 40G-SRBD,Duplex MMF Optical Transceiver Module,40Gbps Optical Transceiver Module |
||

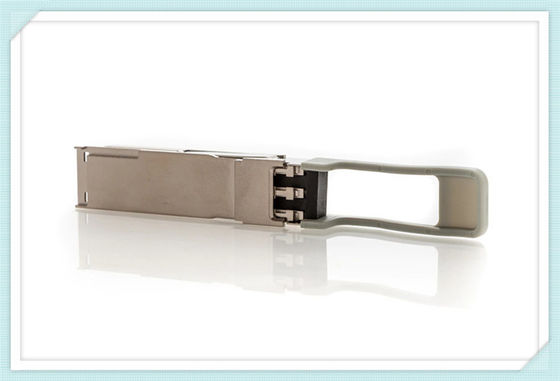

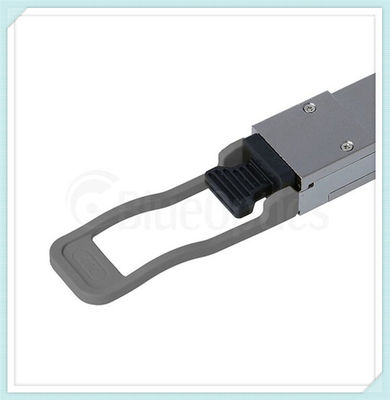

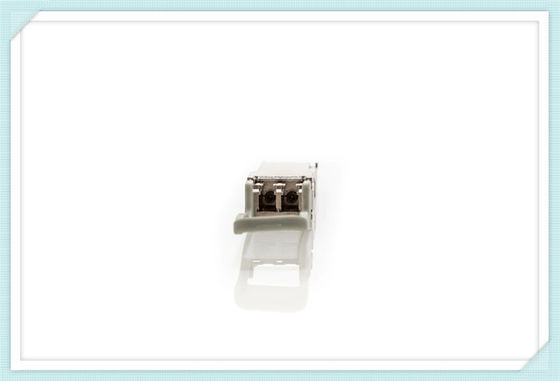

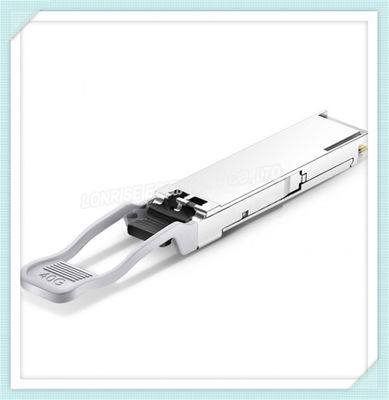

QNetworks QSFP+40G-SRBD Compatible 40GBASE-SR BiDi QSFP+ Optical Transceiver Module for Ethernet and Data Center (MMF, 832nm - 918nm, LC)
QSFP+40G-SRBD compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 150m over multimode fiber (MMF) using a wavelength of 832nm to 918nm via an LC connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA, IEEE 802.3ba-2010 40GBASE-ER4.e and distribution layer applications. It is fully compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard.
Specification
| Networks Compatible | QSFP-40G-SRBD | Vendor Name | LR |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 832nm - 918nm | Max Cable Distance | 150m@OM4
|
| Connector | LC duplex | Media | MMF |
| Transimitter Type | VCSEL 850/900nm | Receiver Type | PIN |
| DDM/DOM | N/A | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -4~5dBm | Receiver Sensitivity | <-6dBm |
| Power Consumption | 3.5W | Extinction Ratio | 3.5dB |
| Modulation Format | NRZ | CDR | None |
| Transmit and Dispersion Penalty | 4dB | Powerbudget | 6dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function
|
Supported |
| Protocols | 40G Ethernet, IEEE802.3ba-2010, MSA Compliant | Application | 40 Gigabit Ethernet interconnects, Data Center |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
| PN | DESCRIPTION | DATA RATE | REACH | TX | RX | OUTPUT POWER | SENSITIVITY |
| HXQ40S | QSFP+ SR4 | 40Gbps | 100M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40S3 | QSFP+ eSR4 | 40Gbps | 300M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40CG | QSFP+ CWDM GR4 | 40Gbps | 2KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40PI | QSFP+ PSM IR4 | 40Gbps | 2KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.5dBm |
| HXQ40L | QSFP+ LR4 | 40Gbps | 10KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40Le | QSFP+ eSM4 | 40Gbps | 10KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.6dBm |
| HXQ40E | QSFP+ ER4 | 40Gbps | 40KM | CWDM DFB | PIN | -2.7～+4.5dBm | ≦-19dBm |
