Product Details:
|
| Product Model: | QSFP+ 40G-LR4 | Form Factor: | QSFP+ |
|---|---|---|---|
| Max Data Rate: | 44.6Gbps | LR P/N: | HXQ40L |
| Max Cable Distance: | 10km@SMF | Wavelength: | 1310nm |
| Warranty: | 1 Year Warranty | Application: | 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 E2, Data Center |
| Connector: | LC Duplex | Power Consumption: | 3.5W |
| Extinction Ratio: | 4.5dB | ||
| High Light: | QSFP+40G-LR4,LC DOM Optical Transceiver Module,44.6Gbps Optical Transceiver Module |
||

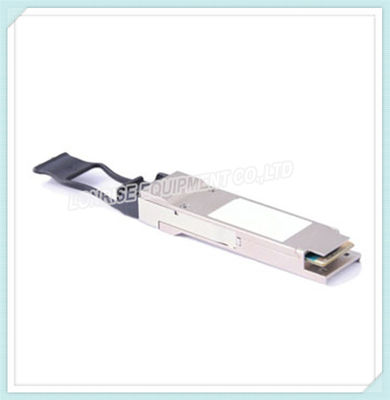

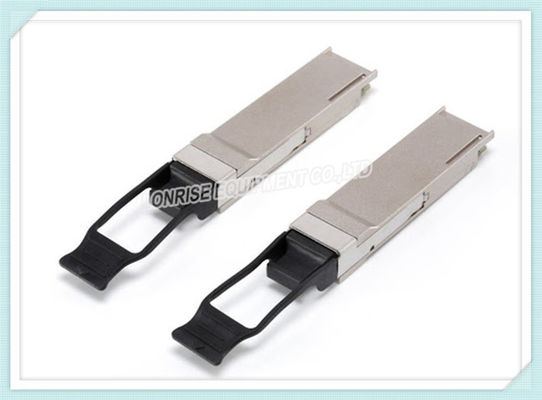

QSFP+40G-LR4 Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard.
Specification
| Compatible | QSFP_40G-LR4 | Vendor Name | LR |
| Form Factor | QSFP+ | Max Data Rate | 44.6Gbps |
| Wavelength | 1310nm | Max Cable Distance
|
10km@SMF |
| Connector | LC duplex | Media | SMF |
| Transimitter Type | DFB CWDM | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -7~2.3dBm | Receiver Sensitivity | <-11.5dBm |
| Power Consumption | 3.5W | Extinction Ratio | 4.5dB |
| Modulation Format | NRZ | CDR | None |
| Transmit and Dispersion Penalty | 2.6dB | Powerbudget | 4.5dB |
| Packaging Technology | BOX Packaging | FEC Function
|
Supported |
| Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant | Application | 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 e2, Data Center |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
| PN | DESCRIPTION | DATA RATE | REACH | TX | RX | OUTPUT POWER | SENSITIVITY |
| HXQ40S | QSFP+ SR4 | 40Gbps | 100M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40S3 | QSFP+ eSR4 | 40Gbps | 300M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40CG | QSFP+ CWDM GR4 | 40Gbps | 2KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40PI | QSFP+ PSM IR4 | 40Gbps | 2KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.5dBm |
| HXQ40L | QSFP+ LR4 | 40Gbps | 10KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40Le | QSFP+ eSM4 | 40Gbps | 10KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.6dBm |
| HXQ40E | QSFP+ ER4 | 40Gbps | 40KM | CWDM DFB | PIN | -2.7～+4.5dBm | ≦-19dBm |
