Product Details:
|
| Brand: | Cisco | Parts Number: | WS-C3850-12X48U-L |
|---|---|---|---|
| Switching Capacity: | 472 Gbps | Stack Bandwidth: | 480 Gbps |
| High Light: | optical ethernet switch,poe ethernet switch |
||

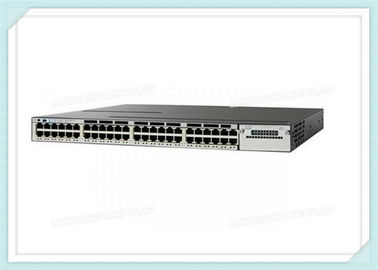

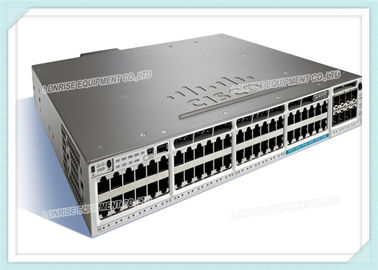

WS-C3850-12X48U-L switch provides 48 x 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports. It is built in wireless controller provide fully convergence between wired and wireless on a single platform.
| Product Code | WS-C3850-12X48U-L |
| Enclosure Type | 1 RU |
| Feature Set | LAN Base |
| Ports | 48 x 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports |
| Network SFP uplink module selection |
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Switching Capacity | 472 Gbps |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Dimensions | 4.45 x 44.5 x 48.8 cm |
|
WS-C3850-12X48U-L Specification |
|
|
model info: |
WS-C3850-12X48U-L |
|
enclosure type |
Rack-mountable - 1U |
|
Ports |
48 x 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports |
|
Network management Interface |
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
None |
|
Switching Capacity |
472 Gbps |
|
Maximum stacking number |
9 |
|
Stack Bandwidth |
480Gbps |
|
Maximum VLANs IDs |
1,000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 GB |
|
Flash Memory |
2 GB |
|
Wireless |
|
|
Number of AP per switch/stack |
100 |
|
Number of wireless clients per switch/stack |
2000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps |
|
Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
Network Modules Selection |
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G |
|
Stacking cable |
●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
|
Stack Power Cable (recommended) |
●CAB-SPWR-30CM stack power cable with a 30CM length |
|
Power supply |
PWR-C1-1100WAC |
|
Available PoE power |
630W |
|
Power Device |
Power supply - redundant - plug-in module |
|
Power Redundancy |
optional |
|
Miscellaneous |
|
|
Dimension |
4.45 x 44.5 x 48.8 cm (1.75 x 17.5 x 19.2 inch) |
|
Weight |
8.0 kg |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
202,030 |
|
Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS IP Base (Upgradable) |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Features |
●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
|
Advanced Network security |
● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) |
|
Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB |
|
Technical Support and Services |
● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply Operating environment and altitude |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply Operating environment and altitude (NEBS) |
|
|
Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
-40ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 13,000 Feet (Up to 4000 Meters) |
|
Storage altitude |
Up to 15,000 Feet (Up to 4573 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
