Product Details:
|
| Warranty: | 1 Year | Brand: | CISCO |
|---|---|---|---|
| Product Type: | Switch - 24 Ports - L3 - Managed | Form Factor: | Rack Mountable - 1U |
| Switch Ports: | 24 X 10/100 + 2 X SFP | Performance: | Switching Capacity : 32 Gbps |
| MAC Address Table Size: | 12K Entries | Jumbo Frame Support: | 9016 |
| High Light: | optical ethernet switch,poe ethernet switch |
||

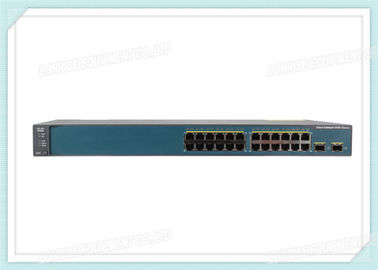

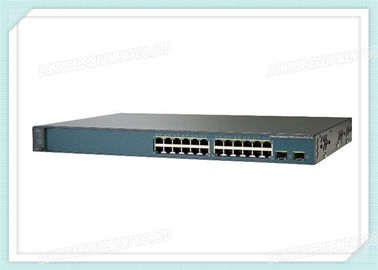

Cisco Catalyst 3560 V2 Series switch WS-C3560V2-24TS-S is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
• 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports
• 1RU fixed-configuration, multilayer switch
• IPv6
• IP Base software feature set
| WS-C3560V2-24TS-S data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560V2-24TS-S |
| Product Type | Switch - 24 ports - L3 - Managed |
| Form Factor | Rack mountable - 1U |
| Switch Ports | 24 x 10/100 + 2 x SFP |
| Performance | Switching capacity : 32 Gbps |
| Capacity | Switched virtual interfaces (SVIs) : up to 1000 Virtual interfaces (VLANs) : 1000 |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | 9016 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory | 32 MB Flash |
| LED Status Lights Indicators | Link activity, port duplex mode, bandwidth utilization %, power, link OK, system |
| Connectivity Slots | |
| Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 1 x console - RJ-45 - management 2 x Ethernet 1000 - SFP (mini-GBIC) |
| Power Supply | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.3 cm |
| Depth | 29.5 cm |
| Height | 4.4 cm |
| Weight | 3.7 kg |
| MTBF | 377,260 hour(s) |
| Compliant Standards | CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| System Software | |
| Software Included | Cisco IOS IP Base |
