WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base

WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base
WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base

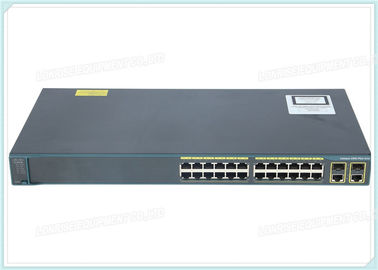

Large Image :  WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: WS-C2960+24TC-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $500-$1000
Packaging Details: Original Cisco packing
Delivery Time: 3-7 work days
Payment Terms: Western Union, T/T, Paypal, L/C, MoneyGram
Supply Ability: 1000 unit/month

WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base

Description
Model Number: WS-C2960+24TC-L Brand: CISCO
Device Type: Switch - 24 Ports - Managed Enclosure Type: Rack-mountable 1U
Ports: 24 X 10/100 + 2 X Combo Gigabit SFP Performance: Switching Capacity: 16 Gbps ¦ Forwarding Performance (64-byte Packet Size): 6.5 Mpps
High Light:

optical ethernet switch

,

poe ethernet switch

WS-C2960+24TC-L Cisco Ethernet Network Switch 2960 Plus 24 10/100 + 2T/SFP LAN Base

1. Overview
The Cisco Catalyst 2960-Plus series switches are fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisco IOS software features, including Cisco Catalyst SmartOperations.



2.WS-C2960+24TC-L Extended Specification

General
Authentication Method RADIUS, TACACS+
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Device Type Switch - 24 ports - Managed
Enclosure Type Rack-mountable 1U
Flash Memory 64 MB
Performance Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 6.5 Mpps
Ram 128 MB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, CLI
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Dimensions & Weight
Depth 24.2 cm
Height 4.4 cm
Weight 3.6 kg
Width 45 cm
Environmental Parameters
Humidity Range Operating 10 - 95% (non-condensing)
Humidity Range Storage 10 - 95% (non-condensing)
Max Operating Temperature 40 °C
Max Storage Temperature 70 °C
Min Operating Temperature -5 °C
Min Storage Temperature -25 °C
Expansion / Connectivity
Interfaces 24 x 100Base-TX - RJ-45 ¦ 2 x - SFP - uplink ¦ 2 x 1000Base-T - RJ-45 - uplink
Manufacturer Warranty
Service Support Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Miscellaneous
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Mtbf 667,000 hours
WS-C2960+24TC-L Others
Power Consumption Operational 18.6 Watt
Software Included Cisco LAN Base software
Power Voltage Required AC 120/230 V ( 50/60 Hz )
Power Device Internal power supply
Power Features Full duplex capability, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snoop
Bundled Services Limited lifetime warranty
Manufacturer Warranty Limited lifetime warranty
Dimensions x
Power AC 120/230 V ( 50/60 Hz )
Jumbo Frame Support 9018 bytes
Capacity Active VLANs: 64

Catalyst 2960 Overview

The Cisco® Catalyst® 2960-Plus Series Switches are fixed-configuration Fast Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisco IOS® software features, including Cisco Catalyst SmartOperations.



Figure 1. Cisco Catalyst 2960-Plus Series Switches



Catalyst 2960

Catalyst 2960 Highlights

Cisco Catalyst 2960-Plus switches feature:

  • 24 or 48 Fast Ethernet ports
  • Small Form-Factor Pluggable (SFP) and 1000BASE-T Gigabit Ethernet uplinks
  • IEEE 802.3af-compliant Power over Ethernet (PoE)
  • LAN Base or LAN Lite Cisco IOS® Software feature set
  • SmartOperations tools that simplify deployment and reduce the cost of network administration
  • Cisco EnergyWise technology to manage energy consumed by connected devices
  • An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement


Catalyst 2960 Applications and Benefits

The Cisco Catalyst 2960-Plus Series provides cost-effective, enterprise class Ethernet switching for:

  • Branch offices, remote sites, and retail locations
  • Conventional desktop workspaces
  • Building infrastructure, physical security, and other nontraditional access applications

Benefits of the 2960-Plus include:

  • Robust quality of service (QoS) that prioritizes voice and critical business applications
  • Flexible security features that can limit access to the network and mitigate threats
  • Tools that reduce total cost of ownership through simplified operations and automation
