Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base

Certification
China LonRise Equipment Co. Ltd. certification
China LonRise Equipment Co. Ltd. certification
Customer Reviews
It's good supplier with good service.

—— Mark Rejardest

LonRise it's goods supplier it's value business.

—— David Vike Moj

Very pleasant cooperation, valuable supplier, will continue to keep cooperation

—— Johnny Zarate

During the delivery the goods was damaged by the DHL, but LonRise arrange the new goods to us timely, really goods very appreciate for our supplier

—— Li Papageorge

Trustable supplier in China, Very happy to do business with Lonrise.

—— Rohit Verma

Good quality with good price, it's my first time to purchase equipment from China, Fast delivery, DHL 3 days to Mexico, Nice experience.

—— Sergio varela

I'm Online Chat Now

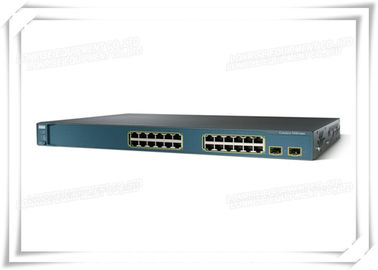

Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base

Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base
Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base

Large Image :  Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base

Product Details:
Place of Origin: CHINA
Brand Name: Cisco
Certification: CE
Model Number: WS-C3560-24TS-S
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Packaging Details: NEW IN BOX
Delivery Time: 2-3days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 35 Units/Month

Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base

Description
Transmission Rate: 10 / 100 / 1000 Mbps Communication Mode: Full-Duplex & Half-Duplex
Number Of LAN Ports: 24 Product Type:: Ethernet Switch
Function: QoS, SNMP, Stackable, VLAN Support Warranty: 2 Years
Lead Time: Within 2 - 3 Days After Received Payment Shipping: DHL,FedEx,TNT,UPS,EMS
High Light:

optical ethernet switch

,

fiber optic network switch

Original WS-C3560-24TS-S Ethernet Network Switch Cisco Catalyst 24 Port Data IP Base

1 . Description:

 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.



Device Type Switch - 24 ports - L3 - Managed
Enclosure Type Desktop - 1U
Ports 24 x 10/100 + 2 x SFP
MAC Address Table Size 12K entries
Routing Protocol RIP-1, RIP-2, static IP routing, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2
Authentication Method Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 128 MB
Flash Memory 32 MB Flash
Status Indicators Port status, port transmission speed, port duplex mode, power, link OK, system
EXPANSION / CONNECTIVITY
Interfaces 24 x 100Base-TX - RJ-45
1 x console - RJ-45 - management
2 x SFP (mini-GBIC)
POWER
Power Device Internal power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 45 Watt
Features Redundant Power System (RPS) connector
MISCELLANEOUS
Width 44.5 cm
Depth 30 cm
Height 4.4 cm
Weight 3.9 kg
MTBF 326,100 hours
Compliant Standards FCC Class A certified, UL, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CB, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00, MIC
SOFTWARE / SYSTEM REQUIREMENTS
Software Included Cisco IOS IP Base
MANUFACTURER WARRANTY
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime
ENVIRONMENTAL PARAMETERS
Min Operating Temperature 0 °C
Max Operating Temperature 45 °C
Humidity Range Operating 10 - 85%



2 . Company



Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base 0











































3. Advantages

Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base 1



4 .Packaging and shiping



Cisco Switch WS-C3560-24TS-S 3560 Series Switch 24 Port Data IP Base 2



If you are interested in any type,Welcome to consult !!
