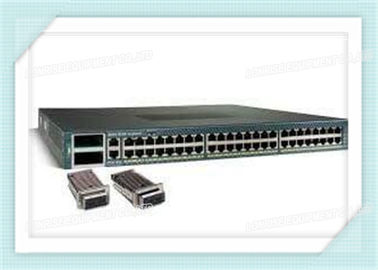

Cisco Switch ME-4924-10GE Ethernet Aggregation Switch 24 Ports Managed

The Cisco ME 4924 is the first switch optimized for UPE aggregation based on Cisco Catalyst 4900 Series technology. It provides the line-rate performance required to deliver data, voice, and video services to thousands of subscribers simultaneously. Service providers have the choice of uplinking to a 10 GE or 1 GE backbone using a variety of Small Form-Factor Pluggable (SFP) and X2 optic types.

ME 4924-10GE Switch is a next-generation Layer 3 user-facing premise equipment (UPE) aggregation device purposely built for high-performance Carrier Ethernet networks. Based on Cisco Catalyst® 4900 Series Switch technology, the Cisco ME 4924 delivers on the performance, availability, and form factor required in residential broadband triple-play service aggregation and business Ethernet deployments.

ME 4924-10GE Specification

GENERAL

• Form Factor
  external
• Subtype
  Gigabit Ethernet
• Ports
  24 x Gigabit SFP + 4 x SFP + 2 x X2
• Performance
  IPv4 switching: 96 Gbps
  Forwarding performance: 71 Mpps
• Capacity
  Active VLANs: 4096
  MAC addresses: 55000
  ACL: 32000
  Switched virtual interfaces (SVIs): 2048
  Spanning Tree Protocol instances: 4094
  Multicast entries (IPv4): 32000
  Layer 2 multicast addresses: 16000
  IGMP snooping entries: 8000
• Jumbo Frame Support
  9216 bytes
• Authentication Method
  RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
• Flash Memory
  64 MB flash
• MAC Address Table Size
  55K entries
• Authentication Method
  Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
• Status Indicators
  Port status, link/activity
• Routing Protocol
  RIP-1, RIP-2, EIGRP, static IP routing
• Jumbo Frame Support
  9216 bytes
• Manufacturer
  Cisco

CAMERA

• Installed Size
  64 MB

NETWORKING

• Cabling Type
  Ethernet 1000Base-X
• MAC Address Table Size
  55K entries
• Subcategory
  network hubs and switches
• Subtype
  Gigabit Ethernet
• Form Factor
  rack-mountable
• Type
  Switch
• Connectivity Technology
  wired
• Data Link Protocol
  Gigabit Ethernet
• Advanced Switching
  Layer 3
• Features
  ARP support, Access Control List (ACL) support, IGMP snooping, ISL support, Jumbo Frames support, LACP support, MAC Address Notification, MAC address filtering, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree Plus (PVST+), Port Aggregation Protocol (PAgP) support, Port Security, Broadcast Storm Control, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), SSH support, Time Domain Reflectometry (TDR), Uni-Directional Link Detection (UDLD), VLAN support, layer 2 switching, layer 3 switching, static IP mode, trunking, CWDM, Cisco Fast EtherChannel, Cisco Gigabit EtherChannel, DHCP snooping, DHCP support, Dynamic Buffer Limiting (DBL), Dynamic Trunking Protocol (DTP) support
• Compliant Standards
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u
• Jumbo Frame Support
  9216 bytes
• Ports Qty
  24
• Manageable
  Yes
• Routing Protocol
  EIGRP, RIP-1, RIP-2, static IP routing
• Switching Protocol
  Ethernet
• Remote Management Protocol
  CLI, HTTPS, RMON 1, RMON 2, SNMP 1, SNMP 2, SNMP 3, SSH
• Data Transfer Rate
  1 Gbps

POWER DEVICE

• Type
  internal power supply
• Hot-Plug
  hot-plug

INTERFACE PROVIDED

• Qty
  1, 2, 28
• Connector Type
  SFP (mini-GBIC), X2
• Comments
  management

POWER

• Installed Qty
  0 (installed) / 2 (max)
• Power Redundancy
  yes
• Max Supported Qty
  2

PROCESSOR

• Installed Qty
  1
• Clock Speed
  266 MHz

MISCELLANEOUS

• Compliant Standards
  CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, ICES-003 Class A, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1
• Height (Rack Units)
  1 m

RAM

• Technology
  SDRAM

ENVIRONMENTAL PARAMETERS

• Min Storage Temperature
  -40 °F
• Max Storage Temperature
  167 °F
• Min Operating Temperature
  32 °F
• Max Operating Temperature
  104 °F
• Humidity Range Operating
  10 - 90% (non-condensing)

HEADER

• Brand
  Cisco
• Product Line
  Cisco ME
• Model
  4924-10GE
• Packaged Quantity
  1
• Compatibility
  PC

DIMENSIONS & WEIGHT

• Width
  17.3 in
• Depth
  16.1 in
• Height
  1.7 in

SOFTWARE

• Type
  Cisco IOS IP Base

PORTS

• Type
  Gigabit SFP
• Qty
  24

PERFORMANCE

• Type
  IPv4 switching, forwarding performance
• Value
  71 Mpps, 96 Gbps

PORTS (2ND)

• Type SFP (mini-GBIC)
• Qty 4

SLOT REQUIRED

• Type none

CAPACITY

• Type ACL, IGMP snooping entries, MAC addresses, Spanning Tree Protocol instances, active VLANs, layer 2 multicast addresses, multicast entries (IPv4), switched virtual interfaces (SVIs)
• Value 16000, 2048, 32000, 4094, 4096, 55000, 8000

PORTS (3RD)

• Type X2
• Qty 2

SERVICE & SUPPORT

• Type 1 year warranty

SERVICE & SUPPORT DETAILS

• Type limited warranty
• Full Contract Period 1 year
