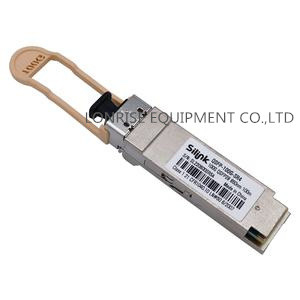

Large Image :  HUAWEI QSFP-100G-SR4 QSFP-100G-SR4-S QSFP-100G-SR4QSFP-100G-SR4 CISCO QSFP-100G-SR4

Product Details:
Place of Origin: CHINA
Brand Name: HUAWEI
Certification: CE
Model Number: QSFP-100G-SR4

HUAWEI QSFP-100G-SR4 QSFP-100G-SR4-S QSFP-100G-SR4QSFP-100G-SR4 CISCO QSFP-100G-SR4

Description
Model Number: 6C-QSFP28-SR4 Type: Fiber Optic Transceivers
Brand Name: 6COM Warranty Time: 3 Years
Source: VCSEL + PIN Connector: MTP/MPO-12
DDM/DOM: Supported

HUAWEI QSFP-100G-SR4 QSFP-100G-SR4-S QSFP-100G-SR4QSFP-100G-SR4 CISCO QSFP-100G-SR4





Product Description



100G QSFP28 100M is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi mode fiber systems using850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP28 module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Specification
Product Name
100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
Product No
6C-QSFP28-SR4
Date Rate
100G
Wavelength
850nm
Source
VCSEL + PIN
Temperature
0 to 70°C (32 to 158°F)
TX Power
-8.4~2.4dBm
Receiver Sensitivity
< -11.3dBm
Media Type
MMF
Connector
MTP/MPO-12
DDM/DOM
Supported
Reach
100m
