QSFP-100G-BIDI-G2 100G QSFP28 BiDi Transceiver Module 70m-100m

Large Image : QSFP-100G-BIDI-G2 100G QSFP28 BiDi Transceiver Module 70m-100m

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	QSFP-100G-BIDI-G2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

QSFP-100G-BIDI-G2 100G QSFP28 BiDi Transceiver Module 70m-100m

Description

Product Name:	SFP Optical Transceiver	Part Number:	QSFP-100G-BIDI-G2
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	QSFP-100G-BIDI-G2
Highlight:	Huawei QSFP28 BiDi transceiver module , 100G QSFP28 transceiver with warranty , QSFP28 BiDi module 70m-100m range

HUAWEI QSFP-100G-BIDI-G2 Overview

The QSFP-100G-BIDI-G2 is a high-performance, QSFP28 form-factor BiDi (Bi-Directional) optical transceiver module. It is specifically designed for 100 Gigabit Ethernet short-reach applications within data centers. Leveraging BiDi technology, this module transmits and receives data at 850nm and 910nm wavelengths simultaneously over a single duplex LC multimode fiber (MMF), effectively doubling the fiber infrastructure capacity.

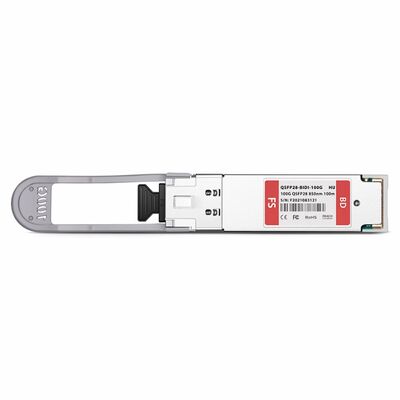

Figure 1 shows the front panel of QSFP-100G-BIDI-G2.

Quick Specs

Table 1 shows the Quick Specs.

Parameter	Details
Form Factor	QSFP28
Data Rate	100Gbps (103.1Gbps)
Wavelength	850nm / 910nm
Max Distance	70m (OM3), 100m (OM4)
Connector	Duplex LC
Fiber Type	Multimode (MMF)
Temperature	0°C to 70°C
Diagnostics	DDM/DOM Support

HUAWEI QSFP-100G-BIDI-G2 Specification

Parameter	Specification
Product Model	QSFP-100G-BIDI-G2
Form Factor	QSFP28 MSA
Standard	100G-BIDI, IEEE 802.3bm
Data Rate	100 Gbps (4x25Gbps)
Wavelength (Tx/Rx)	850 nm / 910 nm
Transmitter Type	VCSEL
Receiver Type	PIN
Max Transfer Distance	70m over OM3, 100m over OM4
Connector Interface	Duplex LC/UPC
Fiber Type	50/125µm Multimode (OM3/OM4)
Power Consumption	< 4W
Operating Voltage	3.3V
Operating Temperature	Commercial (0°C to +70°C)
Digital Diagnostics	DDM / DOM (Digital Optical Monitoring)
FEC	KP4 FEC Support
Safety & Compliance	RoHS-6, CE
Application	Data Center 100G Ethernet, 40G to 100G Upgrade
