OSX010000, Huawei SFP+ Optical Transceiver, 10G SFP+, 1310nm, 10km

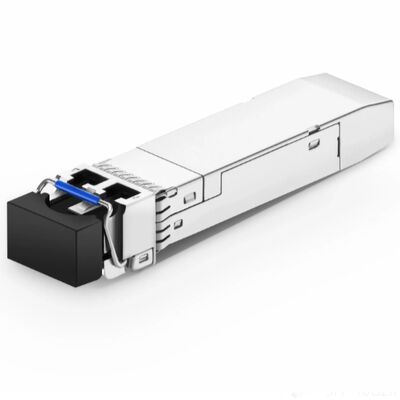

Large Image : OSX010000, Huawei SFP+ Optical Transceiver, 10G SFP+, 1310nm, 10km

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	OSX010000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

OSX010000, Huawei SFP+ Optical Transceiver, 10G SFP+, 1310nm, 10km

Description

Product Name:	SFP Optical Transceiver	Part Number:	OSX010000
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	OSX010000
Highlight:	Huawei SFP+ optical transceiver 10G , 10G SFP+ module 1310nm , Huawei SFP+ transceiver 10km

HUAWEI OSX010000 Overview

The OSX010000 is a high-performance 10G SFP+ optical transceiver module designed for reliable long-distance fiber transmission. It operates at a wavelength of 1310nm and supports transmission distances up to 10km over single-mode fiber with an LC duplex connector.

Figure 1 shows the front panel of OSX010000.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	OSX010000
Transceiver form factor	SFP+
Transmission speed	10 Gbit/s
Center wavelength (nm)	1310
Standard compliance	10Gbase-LR
Connector type	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 10 km
Transmit power (dBm)	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-12.6
Overload power (dBm)	0.5
Extinction ratio (dB)	3.5
Operating temperature	0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm)	110 x 70 x 37

Supported Options

Model	Description
S5700-28P-LI-AC	24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28TP-LI-AC	24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
S5700S-52P-LI-AC	48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28P-PWR-LI-AC	24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
S5700-10P-PWR-LI-AC	8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V
S5720-36C-EI-AC	28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC
S5700-28C-EI-AC	24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply
S5720-56C-HI-AC	48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply
S5720-56PC-EI-AC	48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply
S5720-56C-PWR-HI-AC	48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply

Compare to Similar Items

Item	OSX010000	OMXD30000
Transceiver form factor	SFP+	SFP+
Transmission speed	10 Gbit/s	10 Gbit/s
Center wavelength (nm)	1310	1310
Standard compliance	10Gbase-LR	10GBASE-iLR
Connector type	LC	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 10 km	Single-mode fiber: 1.4 km
Transmit power (dBm)	-8.2 to +0.5	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-12.6	-14.4
Overload power (dBm)	0.5	0.5
Extinction ratio (dB)	3.5	3.5
Operating temperature	0°C to 70°C (32°F to 158°F)	-40°C to +85°C (-40°F to +185°F)

Huawei OSX010000 Specification

OSX010000 Specification
Transceiver form factor	SFP+
Transmission speed	10 Gbit/s
Center wavelength (nm)	1310
Standard compliance	10Gbase-LR
Connector type	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 10 km
Transmit power (dBm)	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-12.6
Overload power (dBm)	0.5
Extinction ratio (dB)	3.5
Operating temperature	0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm)	110 x 70 x 37
