Product Details:
|
| Product Code: | SFP-25G-AOC10M | Form Factor: | 25G SFP+ AOC |
|---|---|---|---|
| Wavelength: | 850 Nm | Transmitter Power: | -8.4 ~ 2.4 DBm |
| Length: | 10 Meter | Minimum Bend Radius: | 25 Mm |
| Connector: | SFP28 To SFP28 | Data Rate: | 25 Gb/s |

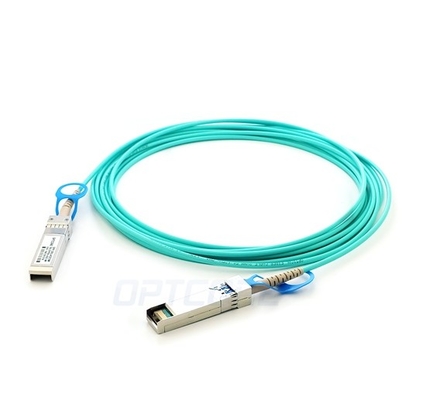

This SFP28 AOC is a cheaper alternative of Cisco SFP-25G-AOC10M 25G active optical cable. It is suitable for short connection between two SFP+ ports in 25G interconnecting networking applications, such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. The 25G AOC is with lightweight that better than the 25G copper DACs. The SFP-25G-AOC10M has been programmed at the factory to ensure working well with Cisco devices, and ideal for your 25G Ethernet network deployment.
| OEM Part Number | SFP-25G-AOC10M | Optcore Part Number | SFP28-25G-AOC10M-CSC |
| Form Factor | 25G SFP+ AOC | Data Rate | 25 Gb/s |
| Wavelength | 850 nm | Supply Voltage | 3.3 V |
| Transmitter Power | -8.4 ~ 2.4 dBm | Receiver Sensitivity | < -10 dBm |
| Length | 10 meter | Fiber Type | OM3 |
| Minimum bend radius | 25 mm | Jacket Type | LSZH |
| Connector | SFP28 to SFP28 | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.2 kg |
