Product Details:
|
| Product Code: | S-SFP-FE-LH40-SM1310 | Transceiver Form Factor: | ESFP |
|---|---|---|---|
| Transmission Speed: | 100 Mbit/s | Center Wavelength (nm): | 1310 |
| Standard Compliance: | 100base-LX | Connector Type: | LC |
| Applicable Cable And Maximum Transmission Distance: | Single-mode Fiber: 15 Km | Transmit Power (dBm): | -5.0 To 0 |

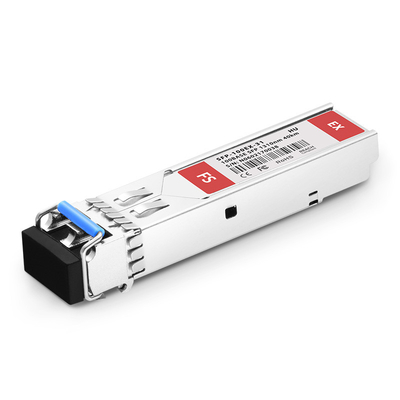

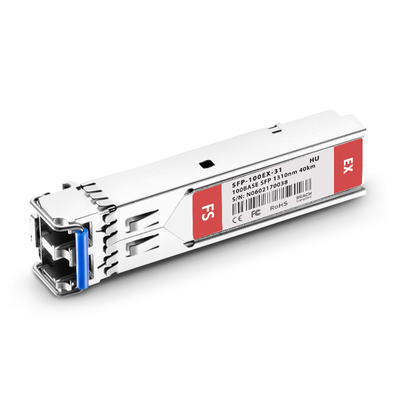

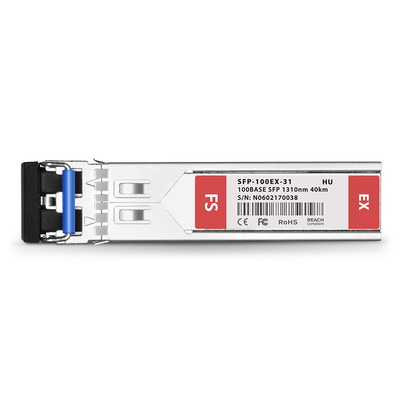

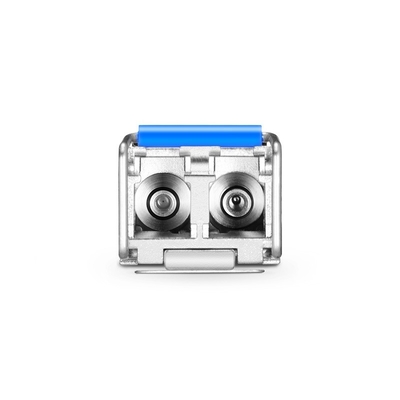

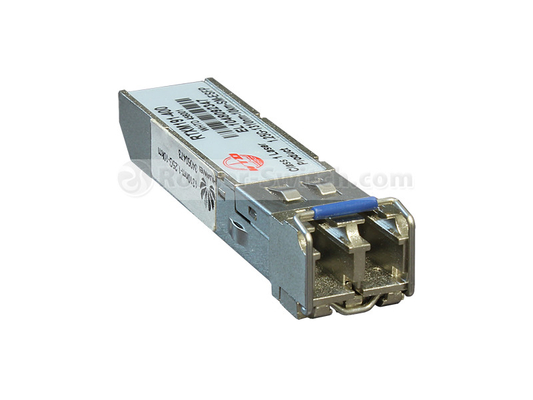

HW S-SFP-FE-LH40-SM1310 compatible SFP transceiver supports up to 40km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of HW switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 100BASE SFP transceiver is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
| Product Code | S-SFP-FE-LH40-SM1310 |
| Transceiver type | eSFP |
| Transmission speed | 100 Mbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-LX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 40 km |
| Transmit power (dBm) | -5.0 to 0 |
| Maximum receiver sensitivity (dBm) | -37.0 |
| Overload power (dBm) | -10.0 |
| Extinction ratio (dB) | 10.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
S-SFP-FE-LH40-SM1310 Specification |
|
| Transceiver type | eSFP |
| Transmission speed | 100 Mbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-LX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 40 km |
| Transmit power (dBm) | -5.0 to 0 |
| Maximum receiver sensitivity (dBm) | -37.0 |
| Overload power (dBm) | -10.0 |
| Extinction ratio (dB) | 10.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
