Product Details:
|
| Product Code: | ESFP-FE-LX-SM1310 | Transceiver Form Factor: | ESFP |
|---|---|---|---|
| Transmission Speed: | 100 Mbit/s | Center Wavelength (nm): | 1310 |
| Standard Compliance: | 100base-LX | Connector Type: | LC |
| Applicable Cable And Maximum Transmission Distance: | Single-mode Fiber: 15 Km | Transmit Power (dBm): | -15.0 To -8.0 |

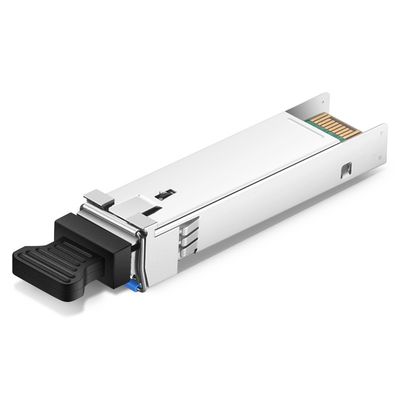

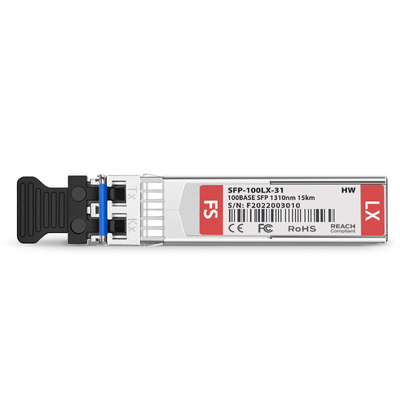

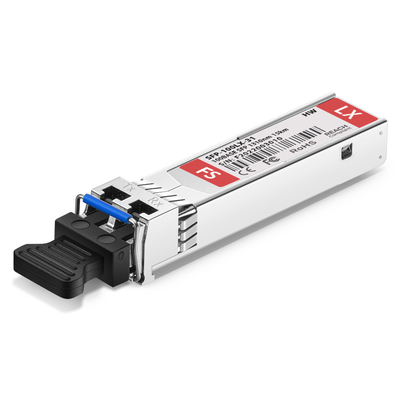

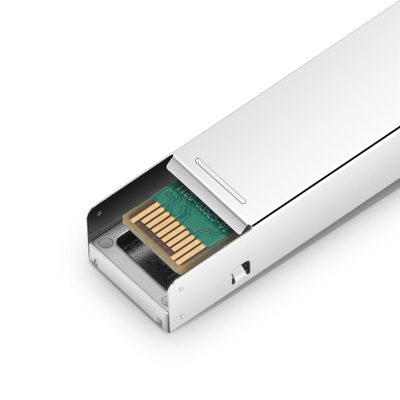

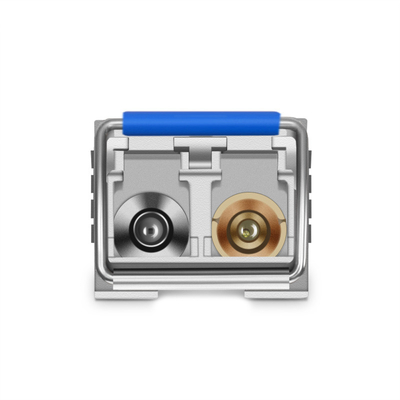

HW eSFP-FE-LX-SM1310 Compatible OC-3/STM-1 IR-1 SFP Transceiver Module (SMF, 1310nm, 15km, LC, DOM)
eSFP-FE-LX-SM1310 Specification |
|
| Transceiver form factor | eSFP |
| Transmission speed | 100 Mbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-LX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 15 km |
| Transmit power (dBm) | -15.0 to -8.0 |
| Maximum receiver sensitivity (dBm) | -31.0 |
| Overload power (dBm) | -8.0 |
| Extinction ratio (dB) | 8.2 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 75 x 40 |
