Product Details:
|
| Product Code: | SFP-FE-SX-MM1310 | Transceiver Form Factor: | SFP |
|---|---|---|---|
| Transmission Speed: | Fast Ethernet | Center Wavelength (nm): | 1310 |
| Standard Compliance: | 100base-FX | 100base-FX: | Multimode Fiber (50 μm Or 62.5 μm Diameter): 2 Km |
| Transmit Power (dBm): | -19.0 To -14.0 | Maximum Receiver Sensitivity (dBm): | -30.0 |

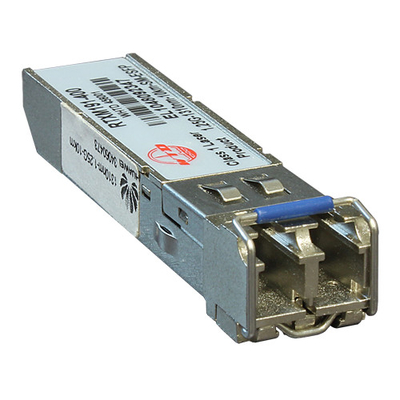

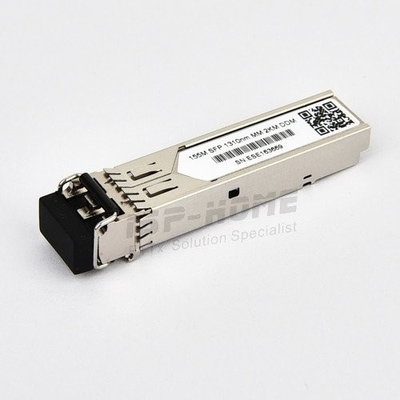

Huawei SFP-FE-SX-MM1310 is Optical Transceiver. It’s a Multi-mode Module.
| Product Code | SFP-FE-SX-MM1310 |
| Transceiver form factor | SFP |
| Transmission speed | Fast Ethernet |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-FX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (50 μm or 62.5 μm diameter): 2 km |
| Transmit power (dBm) | -19.0 to -14.0 |
| Maximum receiver sensitivity (dBm) | -30.0 |
| Overload power (dBm) | -14.0 |
| Extinction ratio (dB) | 10 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 |
