Product Details:
|
| Name: | Cisco QSFP-40G-CSR4 | Connector Type: | LC/SC/FC/ST/MU/MTP/MPO |
|---|---|---|---|
| DDM: | Yes/No | Data Rate: | 1G/10G/25G/40G/100G |
| Distance: | 2km/10km/20km/40km/80km/120km/150km/200km/300km/400km/500km/600km/1000km | Fiber Type: | Single Mode/Multi Mode |
| Package: | SFP/SFP+/XFP/QSFP/QSFP+/CFP/CFP2/CFP4 | Power Consumption: | Low/High |
| Product Name: | Optical Transceiver Module | Temperature: | 0~70°C/ -40~85°C |
| Warranty: | 3 Years | Wavelength: | 850nm/1310nm/1550nm |
| High Light: | QSFP-40G-CSR4 Optical Transceiver Module,QSFP Optical Modules,4x10GBASE-SR Optical Modules |
||

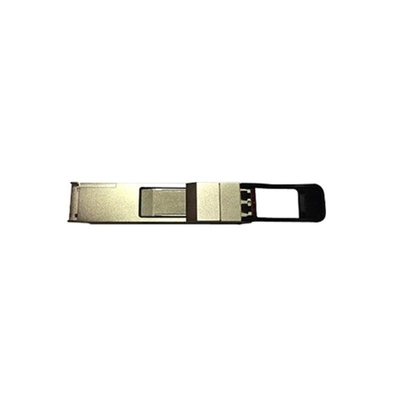

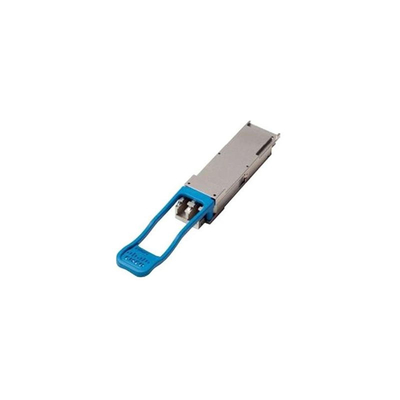

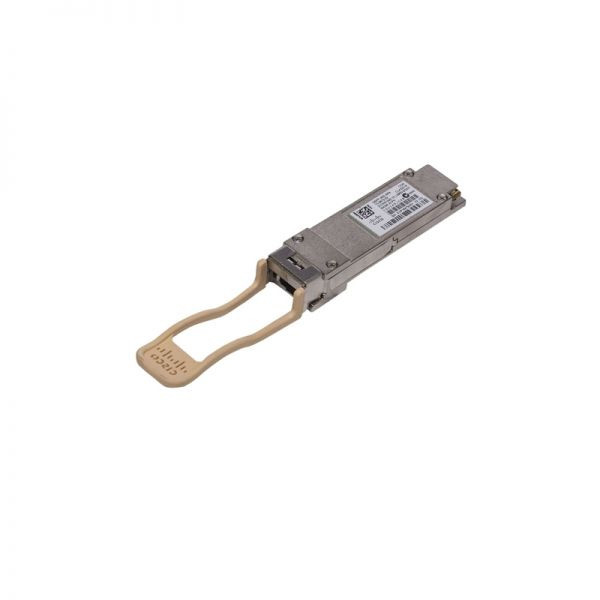

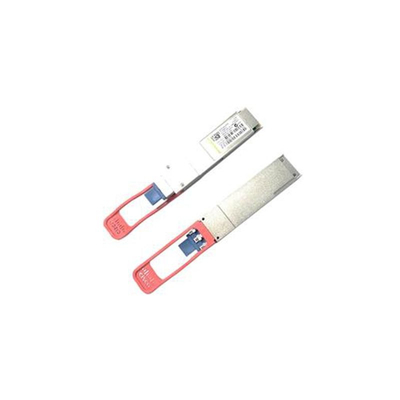

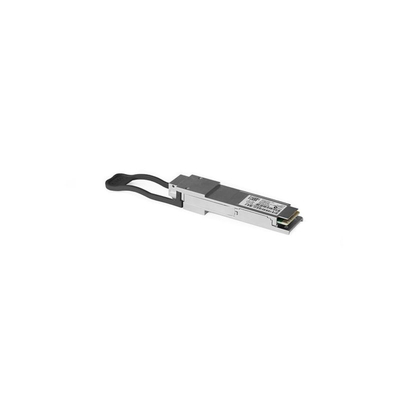

QSFP-40G-CSR4 Optical Transceiver Module Optical Modules QSFP 4x10GBASE-SR
Features and benefits of Cisco QSFP 40G modules Optical Transceiver Module QSFP-40G-CSR4:
•Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
•Interoperable with other IEEE-compliant 40GBASE interfaces where applicable Cisco QSFP-40G-CSR4
•Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
•High-speed electrical interface compliant to the IEEE 802.3ba standard
•QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)
| Product Code | QSFP-40G-CSR4 | QSFP-40G-CSR-S= |
| Description | Cisco 40GBASE-CSR4 QSFP Module for MMF | Cisco 40GBASE-CSR QSFP Module for Duplex MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 850 | 850 |
| Cable Type | MMF | MMF |
| Core Size (microns) |
50.0 50.0 50.0 |
50.0 |
| Modal Bandwidth (MHz-km) |
500 (OM2) 2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
| Cable Distance |
82m 300m 400m |
300m 400m |
| Power Consumption (W) | 1.5 | 3.5 |
| Pull Tab Color | Orange | Orange |
