Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Router | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |
| High Light: | Sec Bundle Integrated Services Router,ISR 4000 Industrial Network Router,Cisco Isr 4000 Router |
||

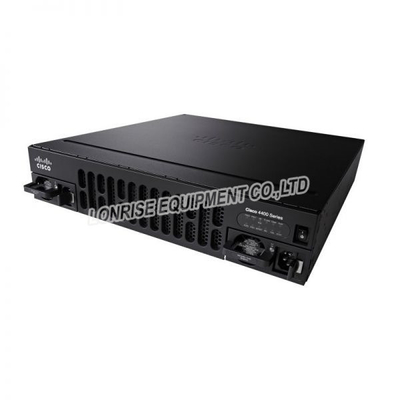

ISR4451-X-SEC/K9 is the Cisco 4451 Integrated Services Router, with Security license. It supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
ISR4451-X-SEC/K9 Specification |
|
| Description | Cisco ISR 4451 Sec bundle w/SEC license |
| Aggregate Throughput | 1 Gbps to 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 2 |
| Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC and PoE |
| Redundant power supply | Internal: AC, DC and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | <50 A |
| Typical power (no modules) (watts) | 158 |
| Maximum power with AC power supply (watts) | 450 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) |
1000 with PoE redundant 1450 with PoE boost no redundancy |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
Our stock support good price
| C1000-48P-4G-L | C9500-NM-8X | CAB-SPWR-30CM |
| C1000-48T-4G-L | C9800-F-X-K9 | C9200L-STACK-KIT |
| WS-C2960X-24TS-LL | N9K-C93180YC-FX | PWR-C4-950WAC-R |
| WS-C2960X-24PSQ-L | N3K-C3172PQ-XL | C9200-NM-4G |
| WS-C2960X-24PS-L | N2K-C2348UPQ | C9200-NM-4X |
| WS-C2960X-48TS-L | AIR-AP1832I-H-K9 | C9300-NM-4G |
| WS-C2960L-24PS-AP | AIR-AP2802I-H-K9 | C9300-NM-8X |
| WS-C2960L-16TS-LL | C9115AXI-H | GLC-LH-SMD |
| WS-C2960L-8TS-LL | C9120AXI-H | SFP-10G-SR |
| WS-C3560-48FS-S | AIR-AP1562I-H-K9 | SFP-10G-LR |
| WS-C2960X-24PS-L | AIR-AP1562D-H-K9 | SFP-10G-SR-S |
| C9200L-48P-4X-E | C9800-L-C-K9 | SFP-10G-LR-S |
| C9200L-48P-4G-E | C9800-L-F-K9 | GLC-TE |
| C9200L-24T-4G-E | AP505 | SFP-H10GB-CU2M |
| C9300-24T-A | AP515 | MA-CBL-40G-3M |
| C9300-48T-A | CP-3905 | GLC-LH-SMD= |
| C9300-24S-A | CP-7821-K9 | ISR4331/K9 |
| C9300-48S-A | CP-8832-MIC-WIRED | ISR4331/K9 RF |
| C9300-48P-E | CS-MIC-TABLE-J | FPR2110-ASA-K9 |
| C9300-24P-E | AIR-AP3802I-E-K9 | FPR2110-ASA-K9 |
| C9300L-24T-4G-E | C1111-8P | FPR2120-ASA-K9 |
| C9300L-48T-4G-E | PWR-C5-125WAC | FPR2130-ASA-K9 |
| C9300-NM-8X | PWR-C5-1KWAC | C9200-NM-4G= |
| C9400-LC-24S | PWR-C6-125WAC | C9200-NM-4G= |
| C9400-LC-48S | STACK-T1-50CM | C9200L-24P-4G-CE |
| C9500-24Y4C-A | STACK-T1-1M | C9200L-24P-4G-CE |
| C9500-48Y4C-A | STACK-T1-3M | C9200L-48P-4G-E |
