Product Details:
|
| Product: | AR2220E | Service Interfaces (standard Configuration): | WAN Interfaces: 2 GE Electrical Interfaces And 1 GE Combo Interface LAN Interfaces: None |
|---|---|---|---|
| Expansion Card Slots: | 4 SIC Slots And 2 WSIC Slots | RPS150: | Supported |
| Memory: | 1 GB | Flash: | 512 MB |
| Power Module Type: | Built-in AC Power Module | Fan Type: | Built-in Fans |

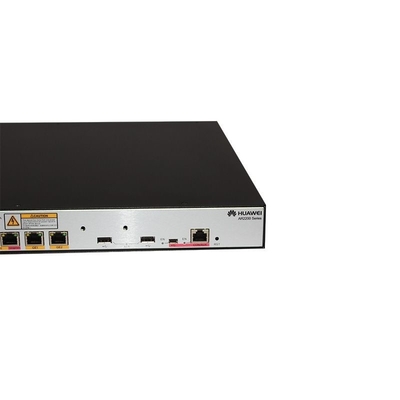

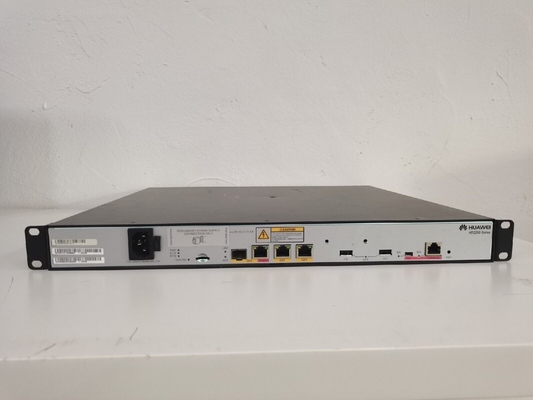

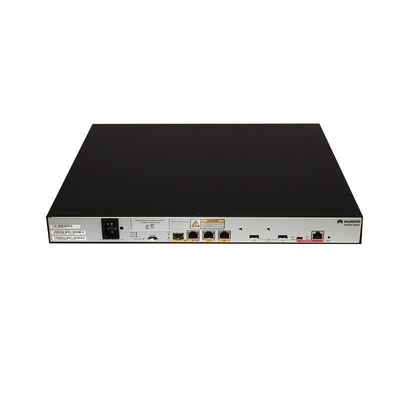

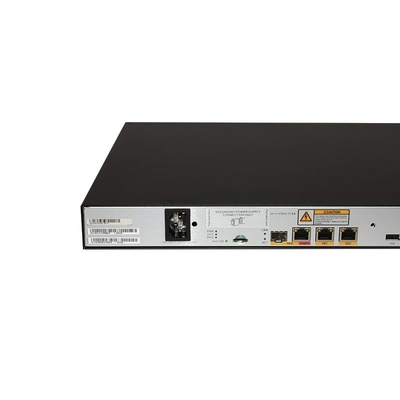

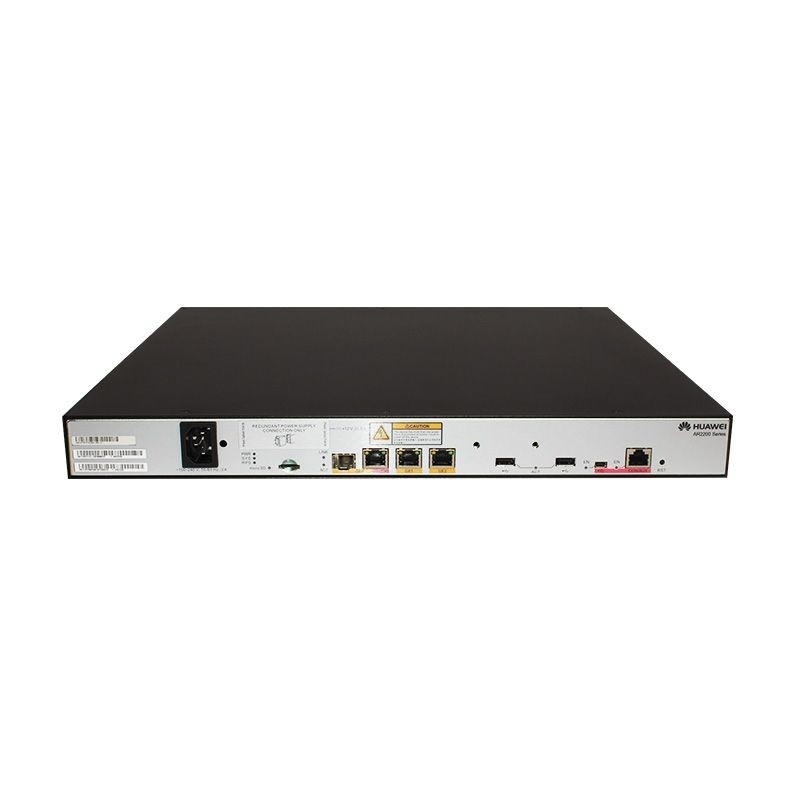

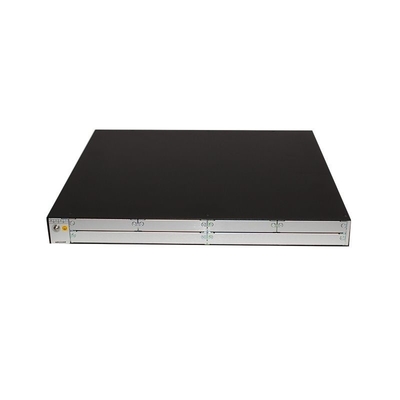

Huawei AR G3 AR2200 series router AR2220E is the next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP) and designs for midsize enterprise or branch office. It includes 3 Gigabit Ethernet WAN (RJ-45 or SFP) port, 2 USB, 4 SIC, 2 WSIC, 1 DSP Slot.
AR2220E Specification |
|
| DSP slots | 2 |
| USB 2.0 ports | 2 |
| Mini-USB ports | 1 |
| Console port | 1 |
| Memory | 1 GB |
|
Flash(default/ max**) |
512MB/ 4 GB |
| Maximum power | 150W |
| Redundant Power Supply External RPS | none |
| AC power | 100 V-240 V |
| Frequency | 50 Hz/60 Hz |
| DC power | -48 V~-60 V |
| Dimensions(height x width x depth) | 44.5 mm x 442 mm x 420 mm |
| Weight | 4.95 kg(without power module and interface card) |
| Ambient temperature | 0oC - 45oC |
| WAN speed with services*** | 800 Mbps |
| Firewall performance (large packets) | 3Gbps |
| Number of recommended users | 300 |
| Fixed WAN ports | 3xGE (1xcombo port) |
| SIC slots | 4 |
| WSIC slots(default/max**) | 2/4 |
| XSIC slots(default/max**) | 0/2 |
| EXSIC slot | 0 |
