Product Details:
|
| Model: | ISR4321-AXV/K9 | Aggregate Throughput: | 50 Mbps To 100 Mbps |
|---|---|---|---|
| Default Flash Memory: | 4 GB | Maximum Flash Memory: | 8 GB |
| Power-supply Options: | External: AC And PoE | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Lead Time: | 2-3 Days |
| Payment: | T/T, Western Union, Paypal | Shipping: | DHL, Fedex, UPS |
| High Light: | Cisco ISR 4321 AXV Bundle,CUBE-10 IP Based Industrial Network Router,Cisco ISR 4321 Industrial Network Router |
||

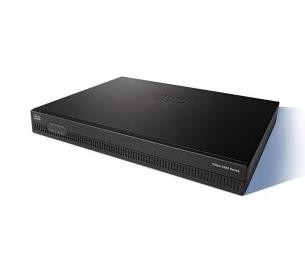

Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses. The Cisco ISR4321-AXV/K9 is the 4321 Application Experience with Voice (AXV) Bundle.
| Product Number | ISR4321-AXV/K9 | ISR4331-AXV/K9 |
| Product Description | Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses. | Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses. |
| Aggregate Throughput | 50 Mbps to 100 Mbps | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 | 3 |
| RJ-45-based ports | 2 | 2 |
| SFP-based ports | 1 | 2 |
| NIM slots | 2 | 2 |
| Onboard ISC slot | 1 | 1 |
ISR4321-AXV/K9 Specification |
|
| Product Number | ISR4321-AXV/K9 |
| Product Description | Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses. |
| Aggregate Throughput | 50 Mbps to 100 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | External: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 36 |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
