Product Details:
|
| Name: | ISR4221/K9 35Mbps-75Mbps System Throughput 2 WAN/LAN Ports 1 SFP Port | Product Model: | ISR4221/K9 |
|---|---|---|---|
| Forwarding Performance: | 132 Mpps | Switching Capacity2: | 176 Gbit/s/432 Gbit/s |
| Fixed Ports: | 48 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports | PoE+: | Supported |
| Port: | Shanghai | Keywords: | Cisco Catalyst C4300 |

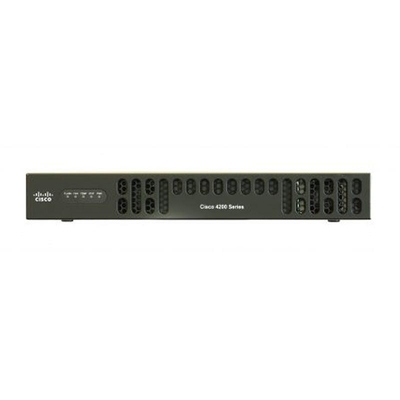

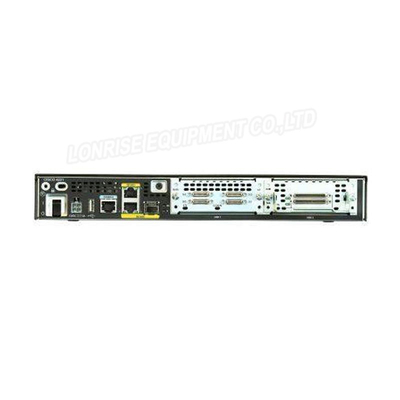

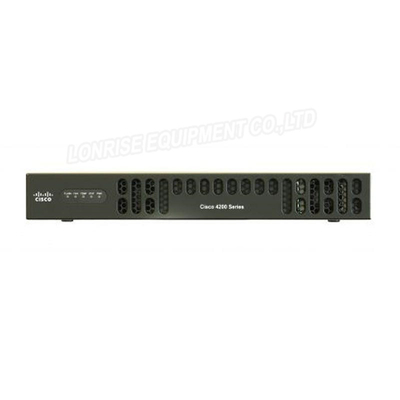

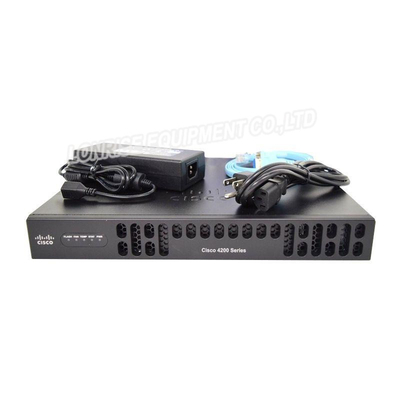

Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.
Cisco ISR4221/K9 Specification |
|
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | No |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 8 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
| Power-supply options | External: AC Only |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 24 |
| Maximum power with AC power supply (watts) | 90 |
| Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
| Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
