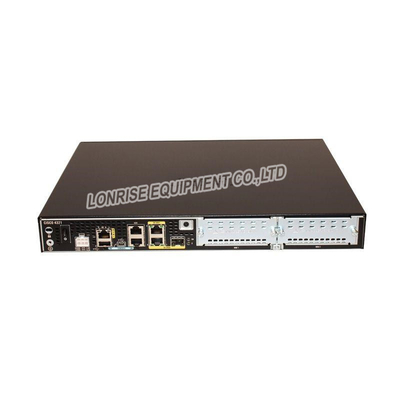

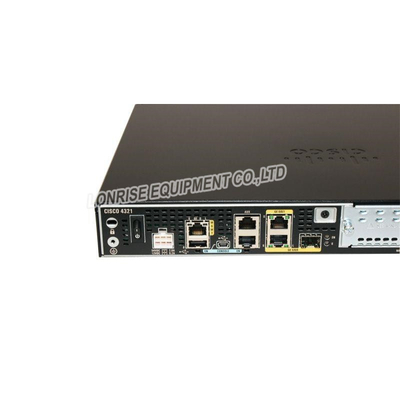

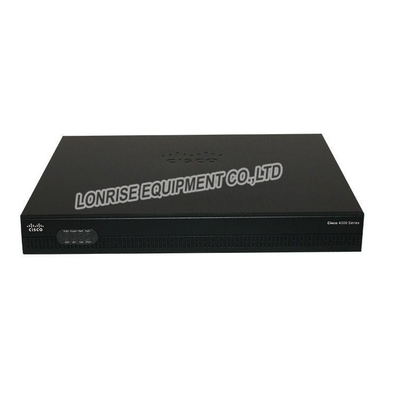

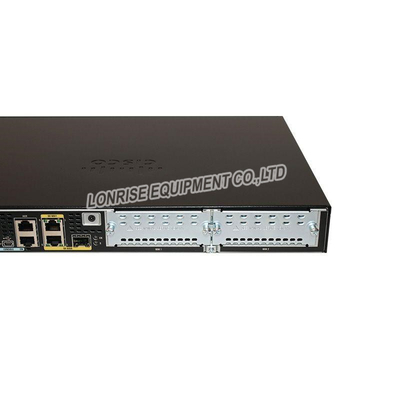

Product Details:
|
| Name: | Cisco ISR4321-AX/K9 50Mbps-100Mbps System Throughput Multi-Core CPU | Product Model: | ISR4321-AX/K9 |
|---|---|---|---|
| Forwarding Performance: | 132 Mpps | Switching Capacity2: | 176 Gbit/s/432 Gbit/s |
| Fixed Ports: | 48 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports | PoE+: | Supported |
| Port: | Shanghai | Keywords: | Cisco Catalyst C4300 Switches |
ISR4321-AX/K9 intelligent WAN bundle combines security features, application experience and Wide Area Application Services (WAAS) features together into one platform. The intelligent WAN bundle optimizes network traffic across the “best” link based on applications and monitors network conditions to deliver the best performance as possible. In this platform, you get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business.
ISR4321-AX/K9 comes with IP base image, Security, AppX licensing for 200 TCP connection resources for ISR WAAS optimization and 4-GB DRAM, 4GB Flash memory, 50Mbps WAN bandwidth by default, to enable the ISR WAAS service, update memory, flash memory and hard drive is required, vWAAS service is not available on this platform.
ISR4321-AX/K9 Specification |
|
| Description | 50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC |
| Aggregate Throughput | 50 Mbps to 100 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | External: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | - |
| AC input voltage | 100 to 240 VAC Autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 36 |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
