Product Details:
|
| Name: | Cisco ISR4321-V/K9 50Mbps-100Mbps System Throughput Multi-Core CPU | Product Model: | ISR4321-V/K9 |
|---|---|---|---|
| Forwarding Performance: | 132 Mpps | Switching Capacity2: | 176 Gbit/s/432 Gbit/s |
| Fixed Ports: | 48 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports | PoE+: | Supported |
| Port: | Shanghai | Keywords: | Cisco Catalyst C4300 Switches |

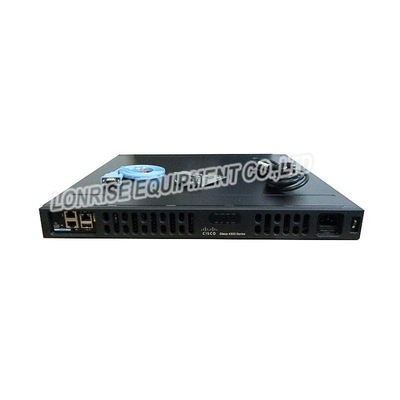

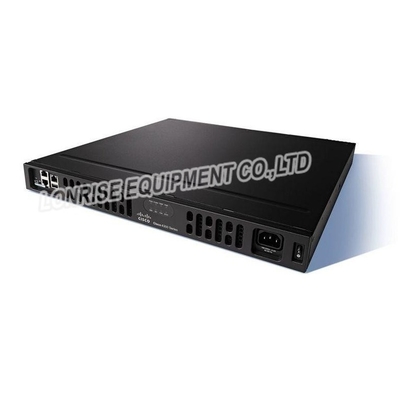

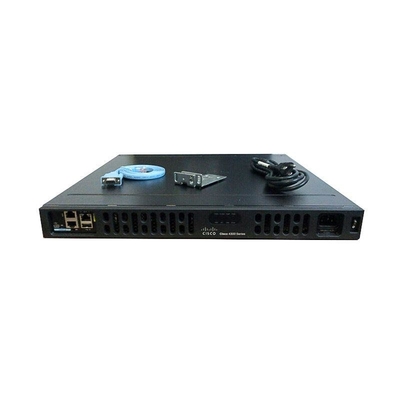

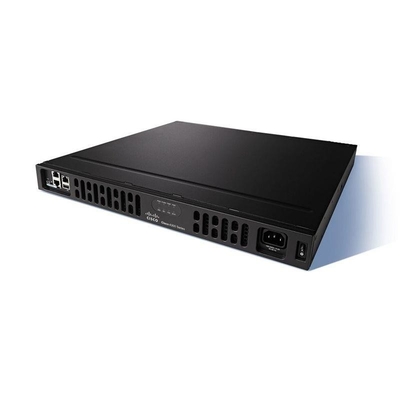

Cisco Intergrated Services router ISR4321-V/K9 Voice Bundle is design to deliver advanced VOIP services to the small enterprise branch environment. Cisco ISR 4321 integrates 2 dual mode Gigabit Ethernet ports and PVDM4 DSP for voice and video services, two network modules, one integrated services card slot, 4GB DDR3 Dream and 4 GB flash memory.Cisco ISR4321 delivers 50Mbps thoughtput by default, with pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps when needed, so the platform performance growth with your business, you only pay for the performance you need. According to security, ISR4321 support most advanced encryption - IPsec, SSL VPN and flex VPN.
ISR4321-V/K9 Specification |
|
| Description | Cisco ISR4321-V/K9 (2GE,2NIM,4G FLASH,4G DRAM,Voice Bundle) |
| Aggregate Throughput | 50 Mbps to 100 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | External: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 36 |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
