Product Details:
|
| Product Model: | QSFP28-112G-ER4-40KM-1310NM | Vendor Name: | LR |
|---|---|---|---|
| Form Factor: | QSFP | Max Data Rate: | Dual Rate 103.1Gbps And 112Gbps |
| Wavelength: | 1310 Nm | Warranty: | 3 Year Warranty |
| Max Cable Distance: | 40km@SMF | Connector: | Duplex LC |
| Media: | SMF | Product Series: | 112G Transceiver |
| Application: | Multimode And Single-Mode Fibers | ||
| High Light: | QSFP28-112G-ER4-40KM-1310NM,QSFP Optical Transceiver Module,Duplex LC Optical Transceiver Module |
||

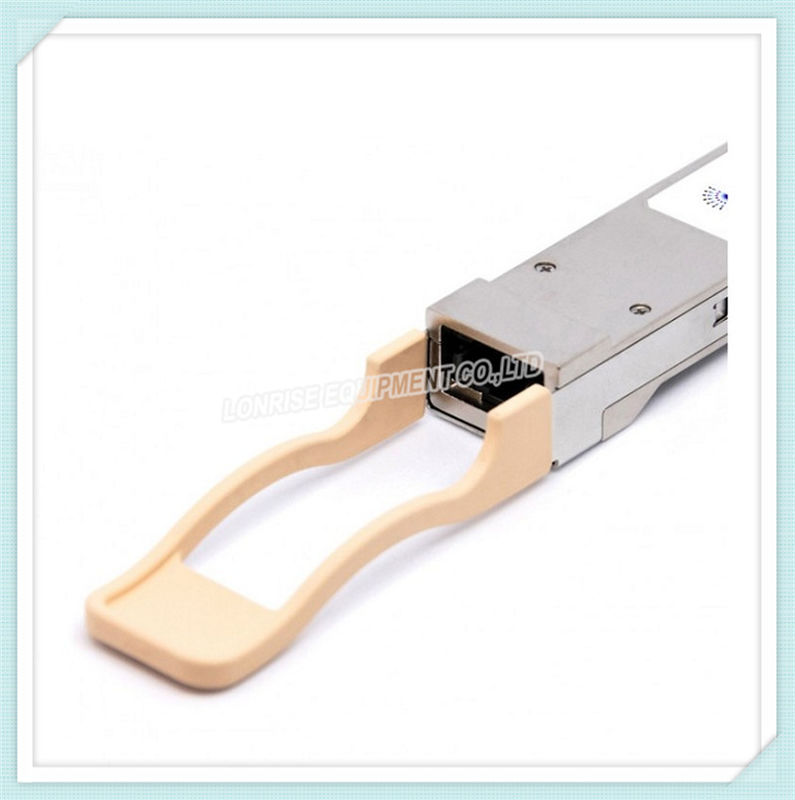

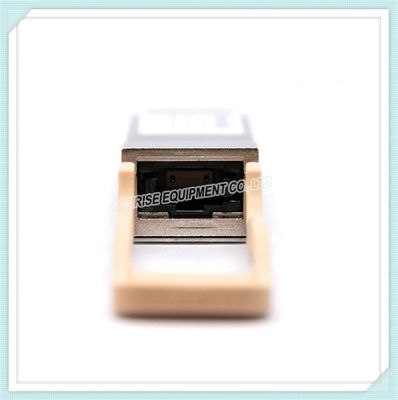

112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module for Telecom (SMF, 1310nm, 40km, LC, DOM)
Specification
|
Form Factor
|
QSFP28
|
Data Rate
|
Dual Rate 103.1Gbps and 112Gbps
|
|
Wavelength
|
1310nm
|
Max Cable Distance
|
40km@SMF
|
|
Connector
|
LC duplex
|
Media
|
SMF
|
|
Transmitter Type
|
4 x LAN WDM DML TOSA
|
Receiver Type
|
4 x APD ROSA
|
|
DDM/DOM
|
Supported
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F)
|
|
TX Power(100G)
|
-2.5~2.9dBm
|
Receiver Sensitivity(100G)
|
<-15dBm
|
|
TX Power(112G)
|
-1~3.3dBm
|
Receiver Sensitivity(112G)
|
<-19dBm
|
|
Power Consumption
|
4.5W
|
Extinction Ratio
|
4dB
|
|
Modulation Format
|
NRZ
|
CDR
|
TX and RX
|
|
Transmit and Dispersion Penalty
|
2.5dB
|
Powerbudget
|
14dB
|
|
Packaging Technology
|
BOX Packaging
|
FEC Function
|
Supported
|
|
Protocols
|
100G Ethernet, 100G Telecom Connections, Infiniband QDR and DDR Interconnects
|
Application
|
100GBASE Ethernet, Telecom, 5G Network Mid/Backhaul
|
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
