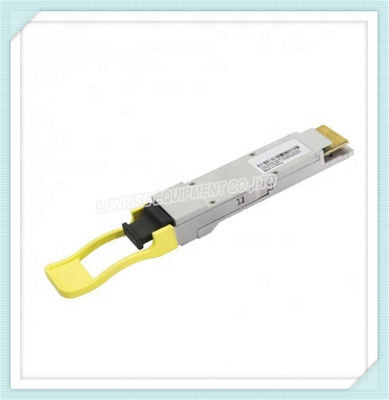

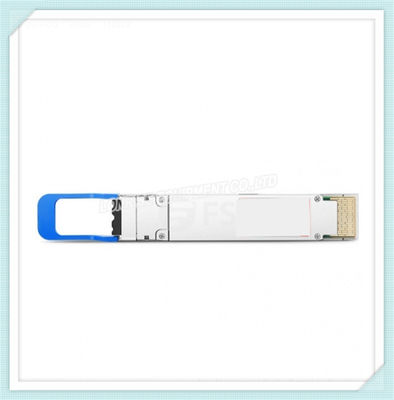

Product Details:
|
| Product Model: | QSFP-DD-400G-DR4 | Vendor Name: | LR |
|---|---|---|---|
| Form Factor: | QSFP-DD | Max Data Rate: | 400Gbps |
| Wavelength: | 1310nm | Warranty: | 1 Year Warranty |
| Max Cable Distance: | 500m | Connector: | MTP/MPO-12 |
| Media: | SMF | Electric Signal: | 8x50G |
| Application: | 400GBASE Data Center | ||
| High Light: | QSFP-DD-400G-DR4,500m SMF Optical Transceiver,DR4 SMF Optical Transceiver |
||
Specification
| Part Number | QSFP-DD-400G-DR4 | Vendor Name | LR |
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 1310nm
|
Max Cable Distance | 500m |
| Connector | MTP/MPO-12 | Media | SMF |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| Electric Signal | 8x50G | Optical Signal | 4x100G |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -2.9~4.0dBm | Receiver Sensitivity | <-5.9dBm |
| Power Consumption | <12W | Extinction Ratio | 3.5dB |
| Modulation Format | PAM4 | DSP | TX and RX |
| Transmitter and Dispersion Eye Closure Quaternary | 3.4dB | Powerbudget | 3dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function
|
Not Supported |
| Protocols | QSFP-DD MSA Compliant | Application | 400GBASE Data Center |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
