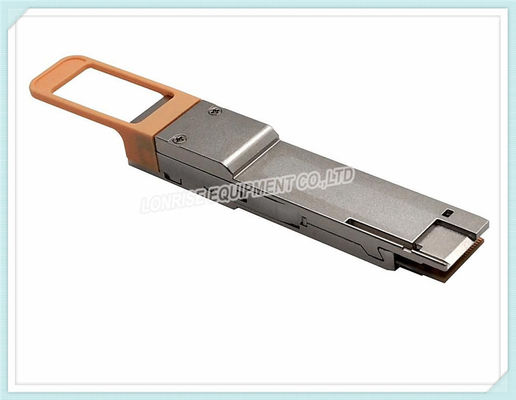

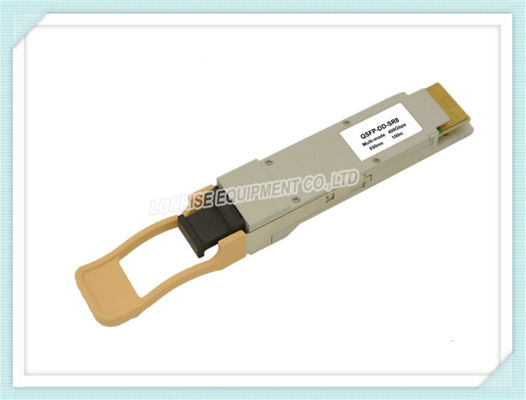

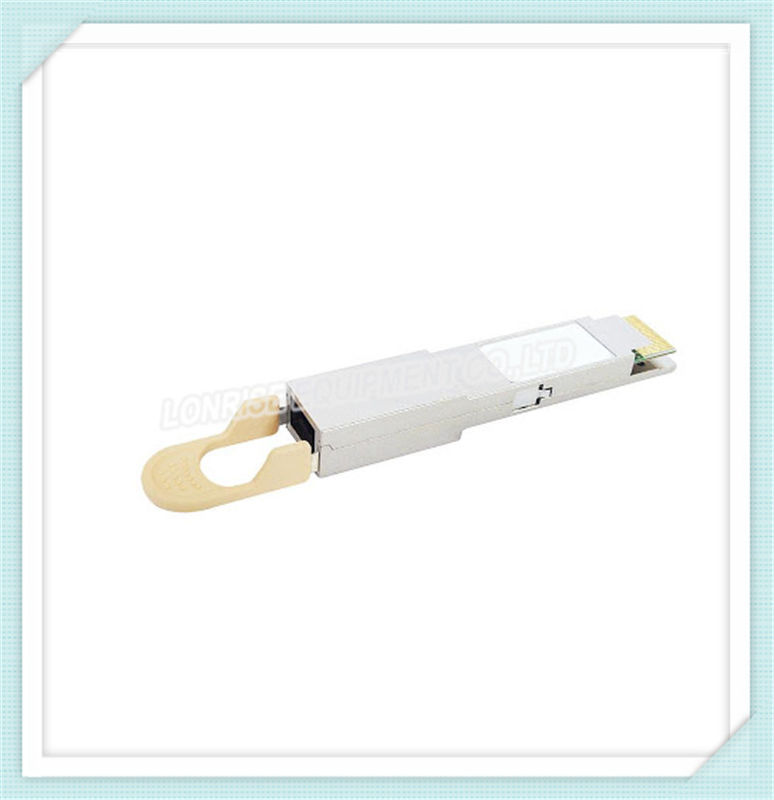

Product Details:
|
| Product Model: | QSFP-DD-400G-SR8 | Vendor Name: | LR |
|---|---|---|---|
| Form Factor: | QSFP-DD | Max Data Rate: | 400Gbps |
| Wavelength: | 850nm | Warranty: | 1 Year Warranty |
| Max Cable Distance: | 70m@OM3/100m@OM4 | Connector: | MTP/MPO-16 |
| Media: | SMF | Electric Signal: | 8x50G |
| Application: | 400GBASE Data Center | ||
| High Light: | QSFP-DD-400G-SR8,100m DOM Optical Transceiver Module,850nm DOM Optical Transceiver Module |
||
The 400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
Specification
| Part Number | QSFP-DD-400G-SR8 | Vendor Name | LR |
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 850nm
|
Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-16 | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| Electric Signal | 8x50G | Optical Signal | 8x50G |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -6~4dBm | Receiver Sensitivity | <-7.9dBm |
| Power Consumption | <10W | Extinction Ratio | 3dB |
| Modulation Format | PAM4 | DSP | TX and RX |
| Transmitter and Dispersion Eye Closure Quaternary | 4.5dB | Powerbudget | 1.9dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function
|
Not Supported |
| Protocols | QSFP-DD MSA Compliant | Application | 400GBASE Data Center |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
