Product Details:
|
| Product Model: | SFP28-25G-SR | Application: | Multimode And Single-Mode Fibers |
|---|---|---|---|
| Form Factor: | SFP28 | LR P/N: | HXS25S |
| Max Data Rate: | 25.78Gbps | Wavelength: | 850nm |
| Warranty: | 1 Year Warranty | Max Cable Distance: | 100m @ OM4 MMF, 70m @ OM3 MMF |
| Connector: | LC Duplex | DOM Support: | YES |
| Media: | MMF | ||
| High Light: | DOM Optical Transceiver Module,SFP28-25G-SR,850nm Optical Transceiver Module |
||

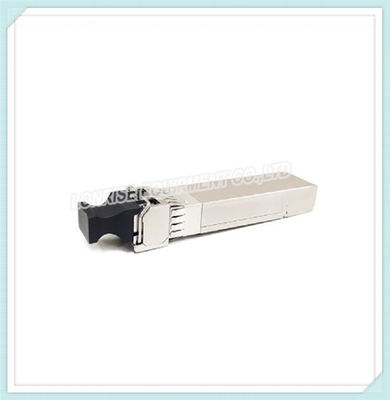

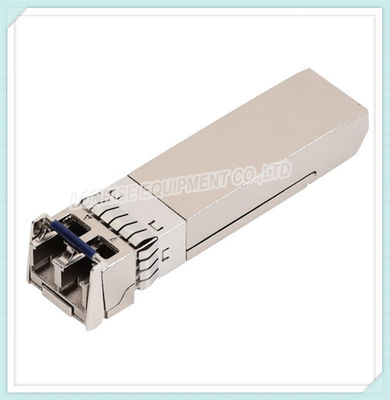

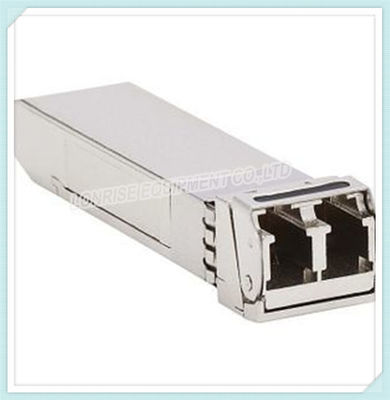

The SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully
compliant with the SFP28 MSA, CPRI and eCPRI standard.
Specification
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
| PN | DESCRIPTION | DATA RATE | REACH | TX | RX | OUTPUT POWER | SENSITIVITY |
| HXQ40S | QSFP+ SR4 | 40Gbps | 100M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40S3 | QSFP+ eSR4 | 40Gbps | 300M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40CG | QSFP+ CWDM GR4 | 40Gbps | 2KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40PI | QSFP+ PSM IR4 | 40Gbps | 2KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.5dBm |
| HXQ40L | QSFP+ LR4 | 40Gbps | 10KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40Le | QSFP+ eSM4 | 40Gbps | 10KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.6dBm |
| HXQ40E | QSFP+ ER4 | 40Gbps | 40KM | CWDM DFB | PIN | -2.7～+4.5dBm | ≦-19dBm |
