Product Details:
|
| Product Model: | QSFP+ 40G-SR4 | Data Rate: | 40Gbps |
|---|---|---|---|
| Reach: | 100M | Tx: | 850nm VCSEL |
| RX: | PIN | Output Power: | -7.6～+2.4dBm |
| Warranty: | 1 Year Warranty | Brand: | Compatible Module With Customized |
| High Light: | MPO DOM Optical Transceiver Module,QSFP+ 40G-SR4,40Gbps Optical Transceiver Module |
||

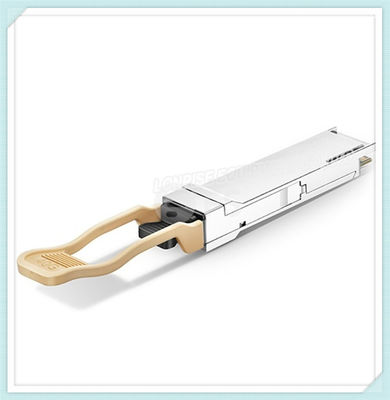

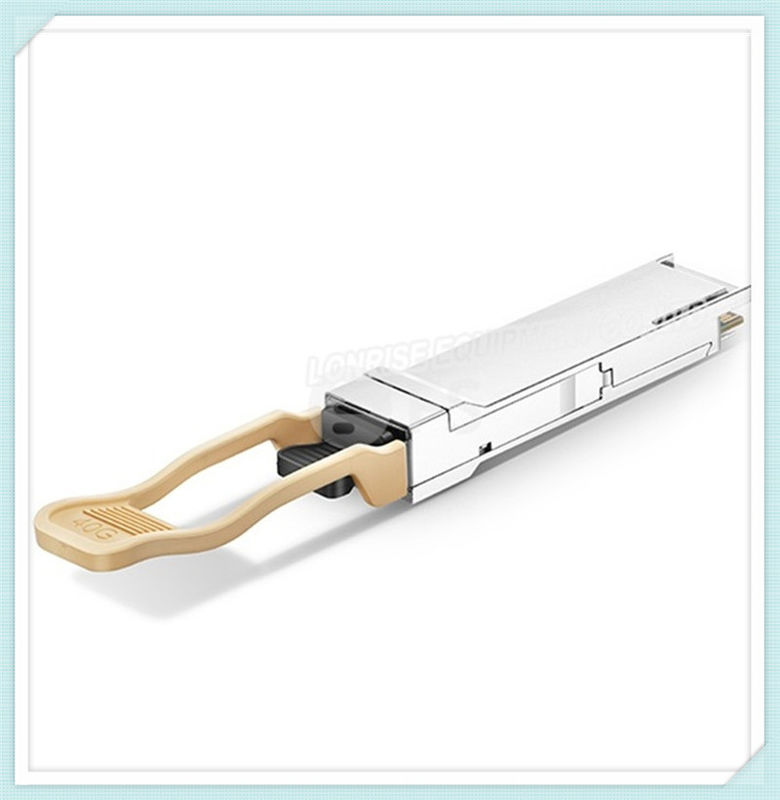

The QSFP+ 40G-SR4 Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 150m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core, distribution layers. It is fully compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard.
Specification
| Compatible | QSFP+ 40G-SR4 | LR P/N | HXQ40S |
| Form Factor | QSFP+ | Max Data Rate | 42Gbps |
| Wavelength | 850nm | Max Cable Distance
|
150m@OM4 MMF
|
| Connector | MTP/MPO | Media | MMF |
| Transimitter Type | VCSEL 850nm | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -7.6~1dBm | Receiver Sensitivity | <-11.1dBm |
| Power Consumption | 1.2W | Extinction Ratio | 3dB |
| Modulation Format | NRZ | CDR | None |
| Transmit and Dispersion Penalty | 3.5dB | Powerbudget | 3.5dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function
|
Supported |
| Protocols | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant | Application | 40GBASE Ethernet, Breakout to 4 x 10GBASE Ethernet, Data Center |
FAQ
1. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
2. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
Related products
| PN | DESCRIPTION | DATA RATE | REACH | TX | RX | OUTPUT POWER | SENSITIVITY |
| HXQ40S | QSFP+ SR4 | 40Gbps | 100M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40S3 | QSFP+ eSR4 | 40Gbps | 300M | 850nm VCSEL | PIN | -7.6～+2.4dBm | ≦-11.1dBm |
| HXQ40CG | QSFP+ CWDM GR4 | 40Gbps | 2KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40PI | QSFP+ PSM IR4 | 40Gbps | 2KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.5dBm |
| HXQ40L | QSFP+ LR4 | 40Gbps | 10KM | CWDM DFB | PIN | -7.5～+2.5dBm | ≦-10dBm |
| HXQ40Le | QSFP+ eSM4 | 40Gbps | 10KM | 1310nm DFB | PIN | -5.5～+1.5dBm | ≦-12.6dBm |
| HXQ40E | QSFP+ ER4 | 40Gbps | 40KM | CWDM DFB | PIN | -2.7～+4.5dBm | ≦-19dBm |
